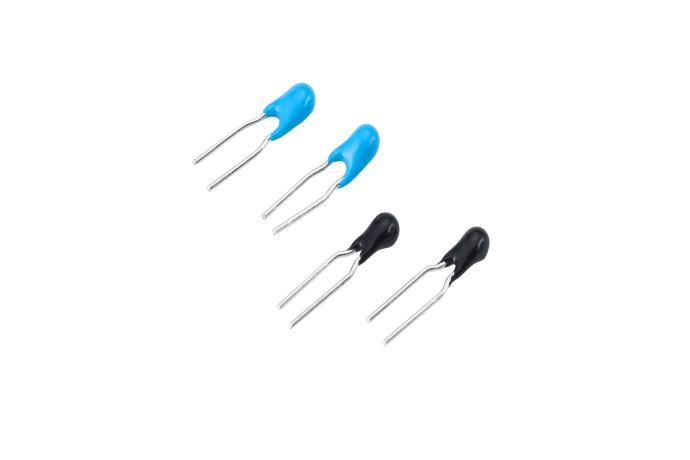

Epoxy Coated Thermistor
NTC Thermistor with epoxy coated chip and copper leads
Features
■ Excellent endurance against thermal shock
■ Wide range of resistance & B-value with high accuracy
■ Epoxy coating for hermeticity from environment
■ Suitable for variable shape of sensor assembly
■ Avaliable for custom size and wire configuration
■ RoHS Complaint
Technical Range
| Operating temperature range |
-40 ~ 125°C |
| Temperature accuracy Tolerances |
±1°C, ±2°C, ±3°C |
| Resistance range at 25℃ |
0.1 ~ 1,000kΩ |
| Resistance Tolerances |
±1%, ±2%, ±3%, ±5%, Special |
| Dissipation constant |
0.5 ~ 1.0mW/°C |
Application
■ Ambient temperature sensing, control and compensation
■ Automotive for temperature monitoring, controlling & Management
■ HVAC & White goods applications
■ Industrial Instrumentation
■ Medical & Chemical Industry
Sentrion specializes in customized products. Please contact us for various options.
