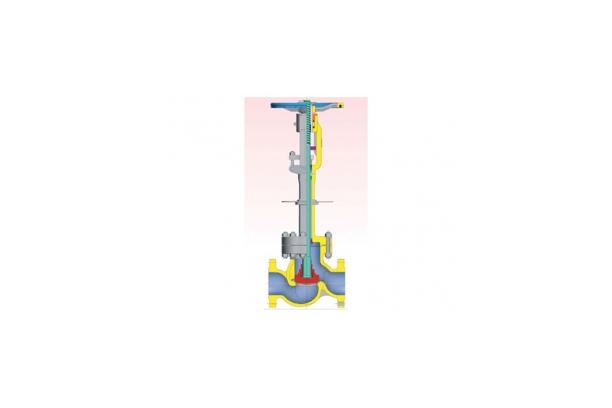

product Image
CRYOGENIC GLOBE
모델명
CLASS-150
자료
CATALOG-Samwoo KJS Tec-CRYOGENIC GLOBE-CLASS-150
구매정보
provider logo
케이제이에스인터밸브(주)

밸브제조업체, 게이트 밸브, 글로브 밸브, 스윙체크 밸브, 듀얼체크 밸브, 볼 밸브, 스텐 밸브, 초저온 밸브, 버터플라이 밸브 등

연락처
055-212-9200
이메일
sales@kjs.co.kr
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매의 당사자가 아닙니다.
제조사
케이제이에스인터밸브(주)[바로가기]
제품 타입
기계
브랜드
-
SKU
119849
제품명
CRYOGENIC GLOBE
모델명
CLASS-150, CLASS-300, CLASS-600
사이즈
-
중량
-
제품 상세 정보

영하 196℃ 초저온배관에 사용되는 밸브로서 Packing의 동결방지를 위하여 Bonnet길이를 길게하여야 하며Sub-Zero처리를 하여 실온에서 변형이 가는것을 사전에 방지하여야 한다.Globe Valve의 용도는 유량이나 압력을 조절하는 목적으로 주로 사용된다.


■ YOKE SLEEVE

The standard material of the Yoke Sleeve is Nodular Ni-resist D2 with over a 1150℃(2100℉) dissolution point in conformity with API Std. Specifications.


■ BOLTING

The body-bonnet bolts are manufactured in accordance with API Std. 600 specifications. The nuts also strictly conform with ANSI B1.1 Strain-hardened austentic stainless steel.


■ BONNET

Austenitic stainless steel used for bodies and bonnets ofter excellent impact strength, minimize heat loss and protect against corrosion.



■ STEM

The heat treated stem delivers adequate mechanical properties as well as excellent surface hardness. Further, opening shutting friction is minimized by accurate machining and lapping.


■ DISC

The disc of our globe valves is a loose disc and can freely revolve around the stem. This prevents friction and galling with the seating surface when the valve is shut. The disc is furnished with a conical seating surface that has been ground and lapped to mirror finish. Stellite 6 for all medium and high pressure application prevents seizing and galling.


■ SEAT RING

Stellite 6 for all medium and high pressure application prevents seizing and galling.


■ BODY

Austenitic stainless steel used for bodies and bonnets offer excellent impact strength, minimize heat loss and pretect against corrosion
