product Image
Analysis
모델명
OS-ANALYSIS-005
시리즈
Analysis
전체보기
자료
-
구매정보
provider logo
(주)오성플랜트

Flange management system, flushing, pressure test, cleaning, piping installation and offshore plant service

연락처
055-733-5262
이메일
wkdduf@dsmepartners.com
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매자가 아닙니다.법적고지 및 안내
제조사
(주)오성플랜트[바로가기]
제품 타입
기계
브랜드
-
SKU
122048
제품명
Analysis
모델명
OS-ANALYSIS-005
사이즈
-
중량
-
제품 상세 정보

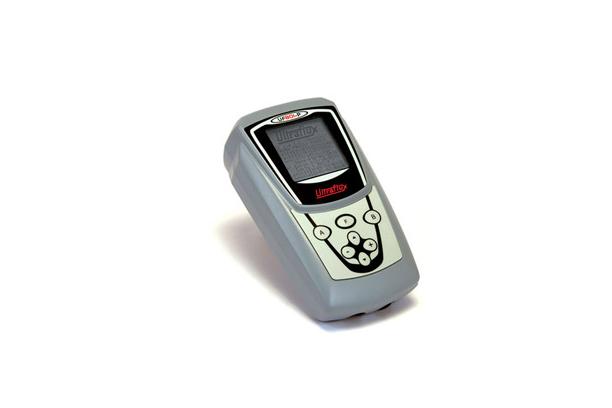

EQUIPMENT TYPEULTRAFLUX UF801P(POTABLE)
Internal ø of pipeFrom 8mm to 9,900mm approximately (depending on wall thickness)
External ø of pipeFrom 10mm to 10,000mm
AccuracyUp to 0.5%
Volume meteringFrom a millilitre up to 1,000 cubic metres
multi-layer pipeUp to three materials taken into consideration
Information storage4MB data logger: time stamping - between 1 and 30 variables - up to 266,706 lines 3-variable time stamping: 133,353 lines • 14 variables: 35,560 lines • 30 variables: 17,206 lines Logging frequency from 1 second to 24 hours
Troubleshooting helpOscilloscope function (echo displayed) • Gain • Quality index
Battery lifeUp to 14hr continuous use • Charge indicator
ProtectionIP68
Temperature rangeFor use from -10°C to 50°C
