Optomarine’s 650nm Optical Module is for 1mm Plastic Optic Fiber.
The transmitter uses RC (Resonance Cavity)-LED and it can transmit long distances up to 100m without noise at the data rate of 155Mbps.
The receiver that is equipped with a PIN Photodiode TIA is implemented on the STEM.
The modules can be easily connected with Plastic fiber
by just cutting the end of the fiber and inserting it into the V-Link (Versatile) connector or Bare Fiber connector type.



| 650nm Transmitter



| 650nm Receiver



| 650nm Transmitter & 650nm Receiver V-link (Versatile) type



Features
▶ Specified with 1mm Plastic Optical Fiber
▶ Easy to install and maintain
▶ Not affected by EMI (Electromagnetic Interference)
▶ Provide 3.3V for multi-link
▶ Lower cost communication Link
▶ Working in –40°C ~ +85°C



Applications
▶ IoT: Smart appliance, Wired communication network for smart automobile
▶ Infra system link, telecommunications switching system
▶ Automobile Fields: Door lock control, Power window control,
 Seat heat control, MUX wiring for Car Audio System
▶ POF system for Aircraft
▶ Noiseless signal transmission for high-speed railroad



Part Number Guide



PIN MAP

650nm Transmitter

650nm Receiver



Specification



Absolute maximum ratings (T=25°C unless otherwise stated)



Absolute maximum ratings (T=25°C unless otherwise stated)

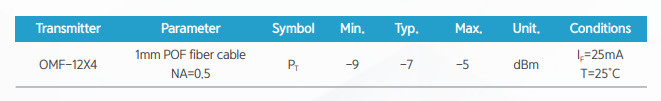

Electrical and optical characteristics (T=25°C unless otherwise stated)
