Description

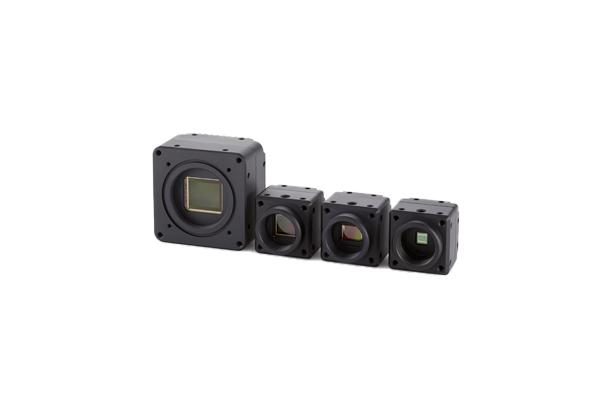

CMOS Camera Link Series.
Features
Sony CMOS [Pregius] are also available high resolution and high FPS implemented simultaneously by high performance CMOS sensor.
Product Lineup
| Model No. | Monochrome/ Color/Near-IR |
Resolution | Frame Rate | Effective Pixels (H x V, pixels) |
Sensor Size | Cell Size (H x V, μm) |
Sensor | Lens Mount |
|---|---|---|---|---|---|---|---|---|
| STC-CMB33PCL | Monochrome | VGA | 432fps | 642 x 484 | 1/3" | 7.4 x 7.4 | CMV300 | C Mount |
| STC-CMC33PCL | Color | |||||||
| STC-SPB43PCL | Monochrome | 0.4M | 523.6fps | 720 x 540 | 1/2.9" | 6.9 x 6.9 | IMX287 | C Mount |
| STC-SPC43PCL | Color | |||||||
| STC-SPB52PCL | Monochrome | 0.5M | 166.5fps | 810 x 620 | 1/1.7" | 9.0 x 9.0 | IMX433 | C Mount |
| STC-SPC52PCL | Color | |||||||
| STC-SPB163PCL | Monochrome | 1.6M | 155fps | 1440 x 1080 | 1/2.9" | 3.45 x 3.45 | IMX273 | C Mount |
| STC-SPC163PCL | Color | |||||||
| STC-SPB202PCL | Monochrome | 2M | 89.1fps | 1620 x 1240 | 1/1.7" | 4.5 x 4.5 | IMX430 | C Mount |
| STC-SPC202PCL | Color | |||||||
| STC-CMB200PCL | Monochrome | 333.3fps | 2048 x 1088 | 2/3" | 5.5 x 5.5 | CMV2000 | C Mount | |
| STC-CMC200PCL | Color | |||||||
| STC-CMB200PCL-NIR | Near-IR | |||||||
| STC-SPB312PCL | Monochrome | 3.2M | 55.47fps | 2048 x 1536 | 1/1.8" | 3.45 x 3.45 | IMX265 | C Mount |
| STC-SPC312PCL | Color | |||||||
| STC-SPB322PCL | Monochrome | 216.2fps | 2048 x 1536 | 1/1.8" | 3.45 x 3.45 | IMX252 | C Mount | |
| STC-SPC322PCL | Color | |||||||
| STC-CMB401PCL | Monochrome | 4M | 179.2fps | 2048 x 2048 | 1" | 5.5 x 5.5 | CMV4000 | C Mount |
| STC-CMC401PCL | Color | |||||||
| STC-CMB401PCL-NIR | Near-IR | |||||||
| STC-APB503PCL | Monochrome | 5M | 14fps | 2592 x 1944 | 1/2.5" | 2.2 x 2.2 | MT9P031 | C Mount |
| STC-APC503PCL | Color | |||||||
| STC-SPB500PCL | Monochrome | 35.7fps | 2448 x 2048 | 2/3" | 3.45 x 3.45 | IMX264 | C Mount | |
| STC-SPC500PCL | Color | |||||||
| STC-SPB510PCL | Monochrome | 163.4fps | 2448 x 2048 | 2/3" | 3.45 x 3.45 | IMX250 | C Mount | |
| STC-SPC510PCL | Color | |||||||
| STC-SPB881PCL | Monochrome | 8.9M | 20.63fps | 4096 x 2160 | 1" | 3.45 x 3.45 | IMX267 | C Mount |
| STC-SPC881PCL | Color | |||||||
| STC-SPB891PCL | Monochrome | 91.98fps | 4096 x 2160 | 1" | 3.45 x 3.45 | IMX255 | C Mount | |
| STC-SPC891PCL | Color | |||||||
| STC-SPB122BPCL | Monochrome | 12M | 15.02fps | 4096 x 3000 | 1.1" | 3.45 x 3.45 | IMX304 | C Mount |
| STC-SPC122BPCL | Color | |||||||
| STC-SPB123BPCL | Monochrome | 66.99fps | 4096 x 3000 | 1.1" | 3.45 x 3.45 | IMX253 | C Mount | |
| STC-SPC123BPCL | Color | |||||||
| STC-CMB120APCL | Monochrome | 62.3fps | 4096 x 3072 | 1.76" | 5.5 x 5.5 | CMV12000 | M42 Mount | |
| STC-CMC120APCL | Color | |||||||
| STC-CMB120APCL-F | Monochrome | 62.3fps | 4096 x 3072 | 1.76" | 5.5 x 5.5 | CMV12000 | F Mount | |
| STC-CMC120APCL-F | Color | |||||||
| STC-OSB250CL | Monochrome | 25M | 32fps | 5120 x 5120 | APS-H | 4.5 x 4.5 | PYTHON 25K | M42 Mount |
| STC-OSC250CL | Color | |||||||
| STC-OSB250CL-F | Monochrome | 32fps | 5120 x 5120 | APS-H | 4.5 x 4.5 | PYTHON 25K | F Mount | |
| STC-OSC250CL-F | Color | |||||||
| STC-GPB250BPCL | Monochrome | 30fps | 5120 x 5120 | 1.1" | 2.5 x 2.5 | GMAX0505 | C Mount | |
| STC-GPC250BPCL | Color |
Dimensions Drawings
STC-CMB/CMC33PCL
STC-CMB/CMC200PCL, STC-CMB/CMC401PCL, STC-CMB200PCL-NIR/CMB401PCL-NIR
STC-SPB/SPC43PCL, STC-SPB/SPC52PCL, STC-SPB/SPC163PCL, STC-SPB/SPC202PCL, STC-APB/APC503PCL
STC-SPB/SPC312PCL, STC-SPB/SPC500PCL, STC-SPB/SPC881PCL, STC-SPB/SPC122BPCL
STC-SPB/SPC322PCL, STC-SPB/SPC510PCL, STC-SPB/SPC891PCL, STC-SPB/SPC123BPCL
STC-CMB/CMC120APCL
STC-CMB/CMC120APCL-F
Model : STC-CMB33PCL, STC-CMC33PCL, STC-SPB43PCL, STC-SPC43PCL, STC-SPB52PCL, STC-SPC52PCL, STC-SPB163PCL, STC-SPC163PCL, STC-SPB202PCL, STC-SPC202PCL, STC-CMB200PCL, STC-CMC200PCL, STC-CMB200PCL-NIR, STC-SPB312PCL, STC-SPC312PCL, STC-SPB322PCL, STC-SPC322PCL, STC-CMB401PCL, STC-CMC401PCL, STC-CMB401PCL-NIR, STC-APB503PCL, STC-APC503PCL, STC-SPB500PCL, STC-SPC500PCL, STC-SPB510PCL, STC-SPC510PCL, STC-SPB881PCL, STC-SPC881PCL, STC-SPB891PCL, STC-SPC891PCL, STC-SPB122BPCL, STC-SPC122BPCL, STC-SPB123BPCL, STC-SPC123BPCL, STC-CMB120APCL, STC-CMC120APCL, STC-CMB120APCL-F, STC-CMC120APCL-F, STC-OSB250CL, STC-OSC250CL, STC-OSB250CL-F, STC-OSC250CL-F, STC-GPB250BPCL, STC-GPC250BPCL
