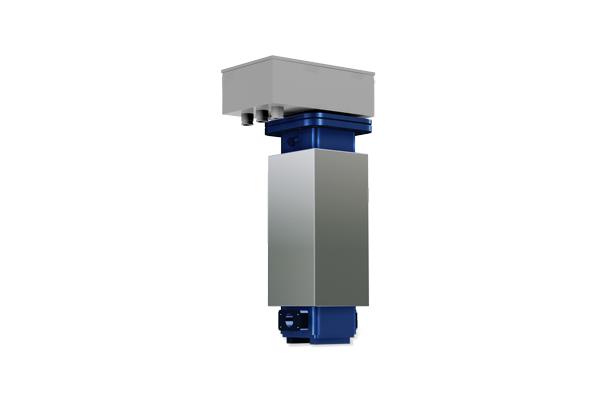

Electric Heater
Create Customer value through innovative system Engineering
Specification
| Body | |
|---|---|
| Material | SS400 or Equirevalriant ASTM |
| Connection | MNSI Special 25A |
| Volume Flow | Max. 15m³ / h |
| Weight / Dimension | 40kg / 600 x 300 x 200 |
| Electric Plate | |
|---|---|
| Material | AC4C or Equirevalriant ASTM |
| Heat Transfer Area | 0.18m² |
| Power Capacity | 5kW / 440V |
| Heating Element | Silicon coated magnesia |
| Application | Lub. Oil, Fuel Oil, Water, Etc., |
| Operating Temperature | -10°C ~ 160°C |
| Working / Test Pressure | 16 bar / 24 bar |
| Juction Box | |
|---|---|
| Material | SS400 or Equirevalriant ASTM |
| Paint | RAL 7032 |
| Cable Grand | PG25 / 35 |
| Model | Max. Temp. / Press. | Max. Operating Power | Number of Blocks | Connections |
|---|---|---|---|---|
| ELBLK | 180°C / 16 bar | 150kW | Min. 3 ~ Max. 30 | SQUARE 25A / 50A |
Feature of Product
Benefit
Compact design and safety control.
Quality
In addition to the control and protection on piping line, Safety system is functioned by backup of thermal couple directly inserted into the inside of electric plate.
As ELPHE is designed with fully enclosed structure, no leakage and explosion can be assured even in abnormal condition. On the contrary, invasion of the external explosive gas can be prevented by openings and surfaces(EX II B T4 Approved and ertified).
ELPHE is patented under MnSi.
Application
Diesel engine fuel oil/Diesel engine, turbine and compressor lubricating oil/Miller, driller and lathe cutting oil/Chemical process/Sea water, raw water etc in Power and Marine Application.
