지금 보고 계신 제품의 제조사에요
(주)루멘스
제품 상세 정보

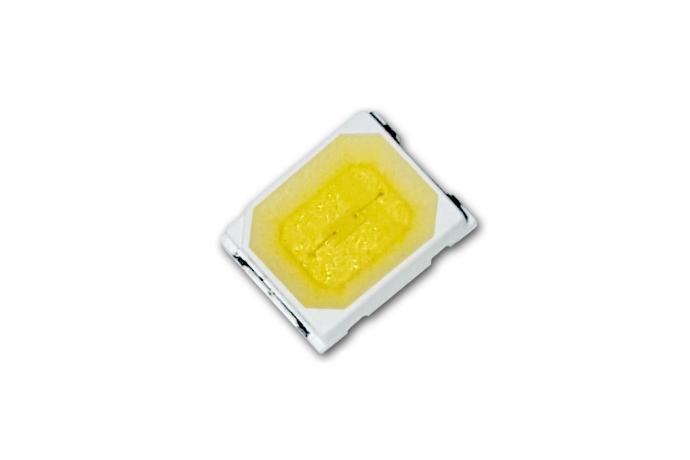

2835
High Efficacy, Wide HV Portfolio
Specifications
| Model Number | CRI [Ra] |
Color Temp [K] |
Watts [W] |
Luminous Flux [lm] |
Luminous Efficacy [lm/W] |
Forward Voltage [VF] |
Forward Current [mA] |
Max forward Current [mA] |
| LM2835S1W830A | 80 | 3,000 | 0.2 | 25 | 147 | 2.9 | 60 | 90 |
| LM2835S1W850A | 80 | 5,000 | 0.2 | 27 | 160 | 2.9 | 60 | 90 |
| LM2835S1W830B | 80 | 3,000 | 0.2 | 27 | 160 | 2.9 | 60 | 90 |
| LM2835S1W850B | 80 | 5,000 | 0.2 | 29 | 171 | 2.9 | 60 | 90 |
| LM2835S2W830A | 80 | 3,000 | 0.5 | 54 | 115 | 3.1 | 150 | 180 |
| LM2835S2W850A | 80 | 5,000 | 0.5 | 58 | 123 | 3.1 | 150 | 180 |
| LM2835S2W830B | 80 | 3,000 | 0.5 | 58 | 123 | 3.1 | 150 | 180 |
| LM2835S2W850B | 80 | 5,000 | 0.5 | 62 | 132 | 3.1 | 150 | 180 |
| LM2835S4W830E01 | 80 | 3,000 | 0.9 | 108 | 120 | 9.0 | 100 | 120 |
| LM2835S4W850E01 | 80 | 5,000 | 0.9 | 115 | 128 | 9.0 | 100 | 120 |
| LM2835S5W830E01 | 80 | 3,000 | 0.5 | 65 | 117 | 18.5 | 30 | 60 |
| LM2835S5W850E01 | 80 | 5,000 | 0.5 | 70 | 126 | 18.5 | 30 | 60 |
