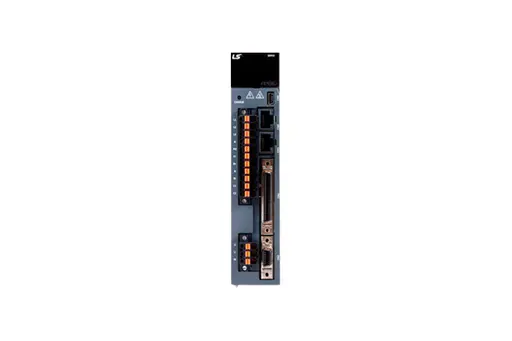

L7S

Pulse, Analog Command Type



Features

ㆍEasy to USE

   - Easy Gain Tuning with Automatic Inertia Estimating Function

   - Easy Setting Built-in Panel Operator

   - Many I/O Contacts and Various Functions (Digital Input: 10 contacts, Digital Output:8 contacts / Analog input, output : 2 contacts) ]

ㆍReliability for Protection Function

   - CE, RoHS Certificated

   - Drive Protection Function and Warn Function

ㆍHigh Response for Precision Control

   - High Resolutions Serial type Encoder (19Bit, BiSS)

   - Improved Speed Response (≒1Khz) Frequency



Specification

L7SA

Item \ Type Name			L7SA001ㅁ	L7SA002ㅁ	L7SA004ㅁ	L7SA008ㅁ	L7SA010ㅁ	L7SA020ㅁ	L7SA035ㅁ	L7SA050ㅁ	L7SA075Bㅁ	L7SA150Bㅁ
Input Power	Main Power Supply		3 Phase AC200 ~ 230[V](-15 ~ +10[%]), 50 ~ 60[Hz]
	Control Power Supply		Single Phase AC200 ~ 230[V](-15 ~ +10[%]), 50 ~ 60[Hz]
Rated Current[A]			1.4	1.7	3.0	5.2	6.75	13.5	16.7	32	39.4	76
Peak Current[A]			4.2	5.1	9.0	15.6	20.25	40.5	50.1	96	98.5	190
Encoder Type			Quad. Type Incremental Line Driver 2,000~10,000[P/R] Serial Type 18Bit(100WC M8 only), 19bit, 20bit(DD motor only)
Control Performance	Speed Control	Speed Control Range	Maximum 1: 5000
		Frequency Response	Maximum 1 [kHz] or above (When using 19bit Serial Encoder
		Speed Command	DC -10 [V]~+10 [V] (Reverse rotation in case of negative voltage)
		Accel/Decel Time	Straight or S-curve acceleration/deceleration (0-10,000 [ms], possible to be set by one [ms] unit)
		Speed Variation Ratio	±0.01 [%] or lower [when load changes between 0 and 100%] ±0.1[%] or lower [temperature 25 ±10°C]
	Position Control	Input Frequency	1[Mpps], Line Driver / 200[kpps], Open Collector
		Input Pulse Type	Symbol + Pulse Series, CW+CCW, A/B Phase
		Electric Gear Ratio	Four digital gear ratios can be set, selected and tuned.
	Torque Control	Torque Command	DC-10~+10 [V] (Reverse direction torque in case of negative voltage)
		Speed Limit	DC 0~10 [V], internal speed command within ±1[%]
		Repetition accuracy	Within ±1[%]
Input/Output Signal	Analog Input	Input Range	DC -10 ~ 10[V]
		Resolution	12[bit]
	Analog Output	Output Range	DC -10 ~ 10[V]
		Resolution	12[bit]
	Digital Input		Total 10 Input Channels(assignment available) SVON, SPD1, SPD2, SPD3, ALMRST, DIR, CCWLIM, CWLIM, EMG, STOP, EGEAR1, EGEAR2, PCON, GAIN2, P_CLR, T_LMT, MODE, ABS_RQ, ZCLAMP Above 19 functions can be used selectively for assignment Signal can be set as positive logic or negative logic
	Digital Output		Total 5 Channels(assignment available), 3 Channels(set as alarm code) ALARM, READY, ZSPD, BRAKE, INPOS, TLMT, VLMT, INSPD, WARN Above 9 outputs can be used selectively for assignment Signal can be set as positive logic or negative logic
Communication	RS-422		Accessible to PC software and the RS422 server
	USB		Status monitoring, JOG operation, parameter upload/download are available with PC Software
Encoder			Serial BiSS encoder and quadrature encoder supported
Encoder Output Type			Random pre-scale output through FPGA (maximum 6.4 Mpps)
Built-in functions	Dynamic Braking		Standard built-in (activated when the servo alarm goes off or when the servo is off)
	Regenerative Braking		Both default built-in and external installation possible
	Display		Seven segments (5 DIGIT)
	Setting Function		Loader (SET, MODE, UP, and [DOWN] keys)
	Additional Function		Auto gain tuning, phase Z detection, manual JOG operation, program JOG operation, automatic analog input calibration
	Protective Function		Overcurrent, overload, overvoltage, insufficient voltage, main power input problem, control power input problem, overspeed, motor cable, overheat(power module overheat, abnormal drive operation’s temp), encoder problem, over-regenerative, sensor problem, communication problem
Operation Environment	Operating Temperature / Storage Temperature		0 ~ 50[°C] / -20 ~ 70[°C]
	Operating Humidity / Storage Humidity		Below 80[%]RH / Below 90[%]RH(avoid dew-condensation)
	Environment		Indoor, Avoid corrosive, inflammable gas or liquid, and electrically conductive dust.

* L7SA075, L7SA150 models are not applicable to incremental type.



L7SB
