PRECISION-MADE CIRCULAR CONNECTOR

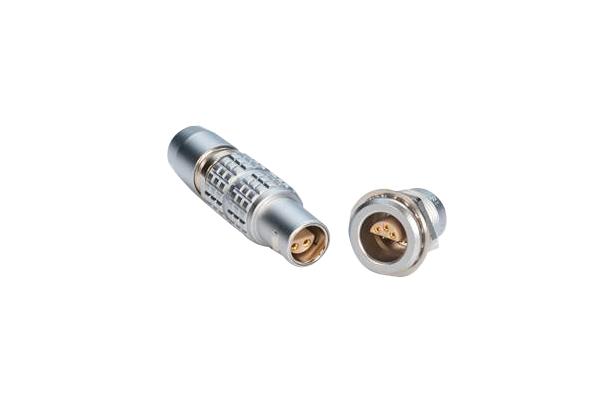

LEMO S-Series circular connectors are the original push-pull connectors, offering the high performance and rugged design for which they are known. The S-Series circular connector is ideal for use in the audio/video field, machine industry, medical applications, research instrumentation, and test & measurement environments. This circular connector can be built with unipolar, coaxial, multipole, or triaxial contacts (stepped inserts for alignment are available in the multipole version). The LEMO S-Series circular connector offers ample customization options with 8 sizes, 9 different color choices, and over 50 shell styles.
Features
- Security of the Push-Pull self-latching system
- 8 different sizes
- Multipole with stepped inserts
- 9 color codings
- Over 50 shell styles
- Solder or print contacts
- Temp. range -55°C to 250°C
Materials & Finishes
Electrical Data
Mechanical
Note: the various tests have been carried out with FFA and ERA connector pairs, with chrome-plated brass shell, PEEK insulator.
