1. 제상방법의 다양한 선택
2. 50mm pipe pitch사용- 전열면적 극대화
3. 제상횟수 단축



■ 농가형 표준 UNIT COOLER

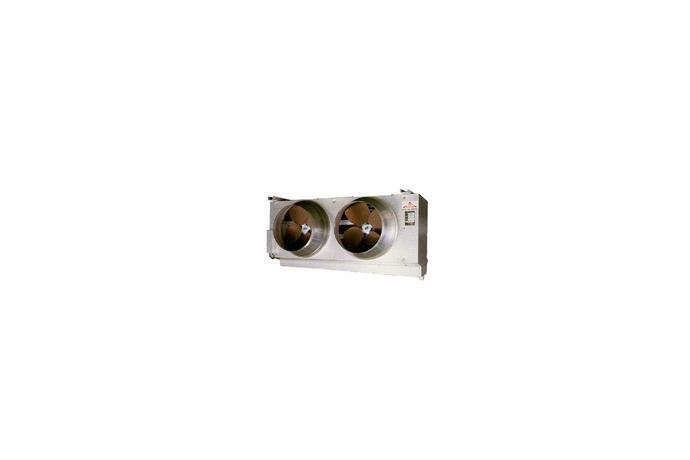

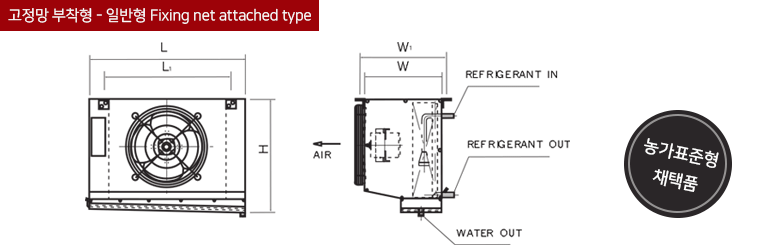

■ 고정망 부착형- 일반형

<특징>
1.히타 제상시 2중 드레인 판을 사용
  -보수점검이 용이
  -드레인 판 효율을 극대화
2.6극 MOTOR를 사용-저소음화

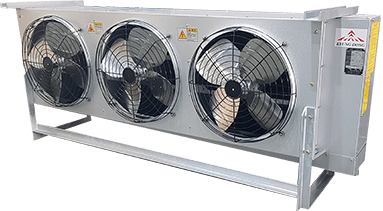

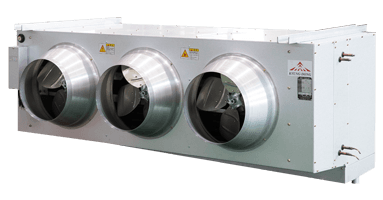

■ 신개발품 - 후드부착형

<특징>
1.바람 도달거리 증대(5M)이상
2.고내의 냉기분포가 고루 유지됨.
3.고효율화 제품

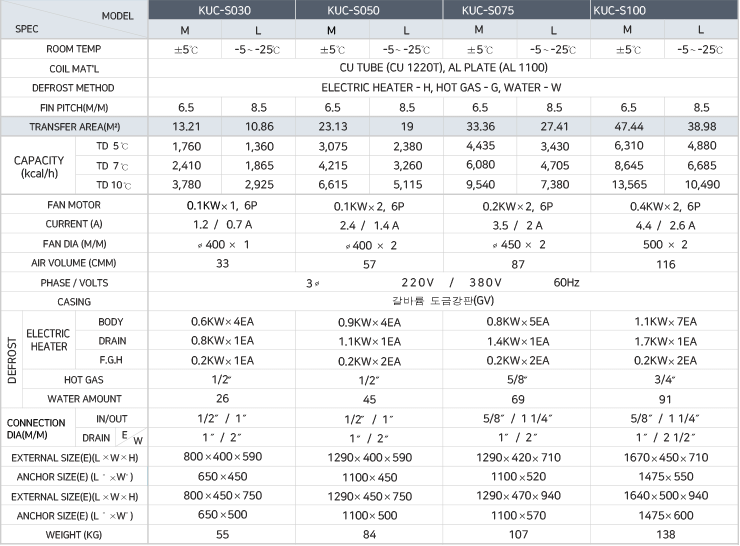

■ UNIT COOLER S-TYPE SPECIFICATION (PROPELLER FAN)

SPEC  ＼  MODEL ROOM TEMP COIL MAT'L DEFROST METHOD FIN PITCH(M/N) TRANSFER AREA(M2) CAPACITY (kcal/h) TD 5℃ TD 7℃ TD 10℃ FAN MOTOR CURRENT(A) FAN DIA(M/M) AIR VOLUME(CMM) PHASE/VOLTS CASING ELECTRIC HEATER BODY DRAIN F.G.H HOT GAS WATER AMOUNT CONNECTION DIA(M/M) IN/OUT DRAIN E/W EXTERNAL SIZE(E)(L*W*H) ANCHOR SIZE(E)(L'*W') EXTERNAL SIZE(E)(L*W*H) ANCHOR SIZE(E)(L'*W') WEIGHT(KG)

KUC-S030 KUC-S050 KUC-S075 KUC-S100 M L M L M L M L ±5℃ -5~-25℃ ±5℃ -5~-25℃ ±5℃ -5~-25℃ ±5℃ -5~-25℃ CU TUBE(CU 1220T),AL PLATE(AL 1100) ELECTRIC HEATER-H, HOT GAS-G, WATER-W 6.5 8.5 6.5 8.5 6.5 8.5 6.5 8.5 13.21 10.86 23.13 19 33.36 27.41 47.44 38.98 1,760 1,360 3,075 2,380 4,435 3,430 6,310 4,880 2,410 1,865 4,215 3,260 6,080 4,705 8,645 6,685 3,780 2,925 6,615 5,115 9,540 7,380 13,565 10,490 0.1KW*1, 6P 0.1KW*2, 6P 0.2KW*2, 6P 0.4KW*2, 6P 1.2 / 0.7 A 2.4 / 1.4 A 3.5 / 2 A 4.4 / 2.6 A φ 400 * 1 φ 400 * 2 φ 450 * 2 φ 500 * 2 33 57 87 116 3φ     220V / 380V     60Hz 갈바륨 도금강판(GV) 0.6KW*4EA 0.9KW*4EA 0.8KW*5EA 1.1KW*7EA 0.8KW*1EA 1.1KW*1EA 1.4KW*1EA 1.7KW*1EA 0.2KW*1EA 0.2KW*2EA 0.2KW*2EA 0.2KW*2EA 1/2" 1/2" 5/8" 3/4" 26 45 69 91 1/2" / 1" 1/2" / 1" 5/8" / 1 1/4" 5/8" / 1 1/4" 1" / 2" 1" / 2" 1" / 2" 1" / 2 1/2" 800*400*590 1290*400*590 1290*420*710 1670*450*710 650*450 1110*450 1110*520 1475*550 800*450*750 1290*450*750 1290*470*940 1640*500*940 650*500 1100*500 1110*570 1475*600 55 84 107 138

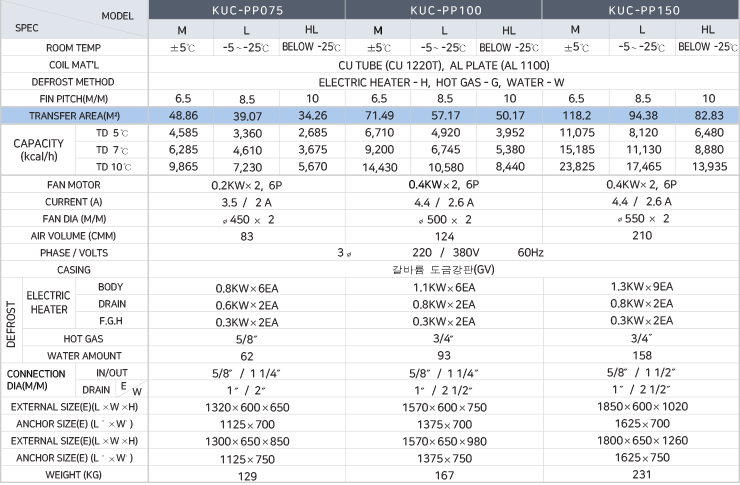

■ UNIT COOLER PP-TYPE SPECIFICATION (PROPELLER FAN)

SPEC  ＼  MODEL ROOM TEMP COIL MAT'L DEFROST METHOD FIN PITCH(M/N) TRANSFER AREA(M2) CAPACITY (kcal/h) TD 5℃ TD 7℃ TD 10℃ FAN MOTOR CURRENT(A) FAN DIA(M/M) AIR VOLUME(CMM) PHASE/VOLTS CASING ELECTRIC HEATER BODY DRAIN F.G.H HOT GAS WATER AMOUNT CONNECTION DIA(M/M) IN/OUT DRAIN E/W EXTERNAL SIZE(E)(L*W*H) ANCHOR SIZE(E)(L'*W') EXTERNAL SIZE(E)(L*W*H) ANCHOR SIZE(E)(L'*W') WEIGHT(KG)

KUC-PP075 KUC-PP100 KUC-PP150 M L HL M L HL M L HL ±5℃ -5~-25℃ BELOW -25℃ ±5℃ -5~-25℃ BELOW -25℃ ±5℃ -5~-25℃ BELOW -25℃ CU TUBE (CU 1220T), AL PLATE(AL 1100) ELECTRIC HEATER-H, HOT GAS-G WATER-W 6.5 8.5 10 6.5 8.5 10 6.5 8.5 10 48.86 39.07 34.26 71.49 57.17 50.17 118.2 94.38 82.83 4,585 3,360 2,685 6,710 4,920 3,952 11,075 8,120 6,480 6,285 4,610 3,675 9,200 6,745 5,380 15,185 11,130 8,880 9,865 7,230 5,670 14,430 10,580 8,440 23,825 17,465 13,935 0.2KW * 2, 6P 0.4KW * 2, 6P 0.4KW * 2, 6P 3.5 / 2A 4.4 / 2.6A 4.4 / 2.6A φ450 * 2 φ500 * 2 φ550 * 2 83 124 210 3φ     220 / 380V     60Hz 갈바륨 도금강판(GV) 0.8KW * 6EA 1.1KW * 6EA 1.3KW * 9EA 0.6KW * 2EA 0.8KW * 2EA 0.8KW * 2EA 0.3KW * 2EA 0.3KW * 2EA 0.3KW * 2EA 5/8" 3/4" 3/4" 62 93 158 5/8" / 1 1/4" 5/8" / 1 1/4" 5/8" / 1 1/2" 1" / 2" 1" / 2 1/2" 1" / 2 1/2" 1320*600*650 1570*600*750 1850*600*1020 1125*700 1375*700 1625*700 1300*350*850 1570*650*980 1800*650*1260 1125*750 1375*750 1625*750 129 167 231



SPEC  ＼  MODEL ROOM TEMP COIL MAT'L DEFROST METHOD FIN PITCH(M/M) TRANSFER AREA(M2) CAPACITY (kcal/h) TD 5℃ TD 7℃ TD 10℃ FAN MOTOR CURRENT(A) FAN DIA(M/M) AIR VOLUME(CMM) PHASE/VOLTS CASING ELECTRIC HEATER BODY DRAIN F.G.H HOT GAS WATER AMOUNT CONNECTION DIA(M/M) IN/OUT DRAIN E/W EXTERNAL SIZE(E)(L*W*H) ANCHOR SIZE(E)(L'*W') EXTERNAL SIZE(W)(L*W*H) ANCHOR SIZE(W)(L'*W') WEIGHT(KG)

KUC-PP200 KUC-PP250 KUC-PP300 M L HL M L HL M L HL ±5℃ -5~-25℃ BELOW -25℃ ±5℃ -5~-25℃ BELOW -25℃ ±5℃ -5~-25℃ BELOW -25℃ CU TUBE (CU 1220T), AL PLATE(AL 1100) ELECTRIC HEATER-H, HOT GAS-G WATER-W 6.5 8.5 10 6.5 8.5 10 6.5 8.5 10 143.9 115.08 101 192.9 154.26 135.38 213.19 170.49 149.63 13,505 9,900 7900 18,105 13,270 10,590 20,005 14,665 11,705 18,515 13,570 10,830 24,815 18,190 14,515 27,425 20,105 16,040 29,045 21,295 16,990 38,935 28,545 22,770 43,030 31,545 25,170 0.4KW * 3, 6P 0.4KW * 3, 6P 0.75KW * 3, 6P 6.6 / 3.9A 6.6 / 3.9A 12.9 / 7.2A φ500 * 3 φ550 * 3 φ600 * 3 256 343 379 3φ     220 / 380V     60Hz 갈바륨 도금강판(GV) 1.5KW * 9EA 1.5KW * 12EA 1.7KW * 12EA 1.1KW * 2EA 1.2KW * 2EA 1.5KW * 2EA 0.3KW * 3EA 0.3KW * 3EA 0.3KW * 3EA 3/4" 3/4" 3/4" 192 257 284 3/4" / 2" 3/4" / 2" 3/4" / 2" 1 1/4" / 2 1/2" 1 1/4" / 3" 1 1/4" / 3" 2190*600*1050 2230*600*1050 2450*700*1070 1965*700 1975*800 2175*800 2140*650*1300 2170*750*1300 2400*750*1300 1965*750 1975*850 2175*850 285 336 373
