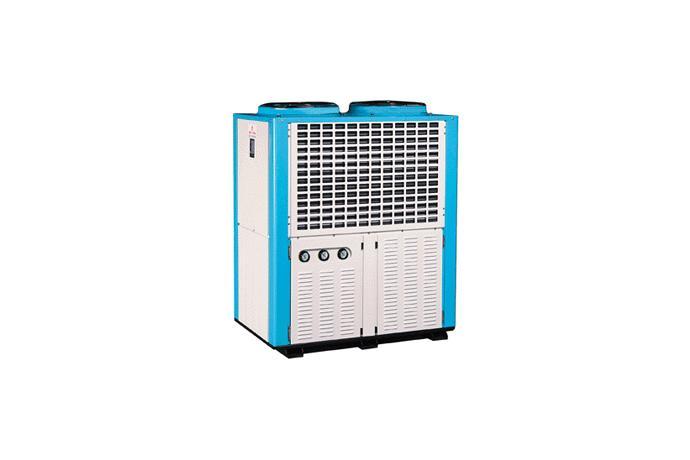

제품 상세 정보
- High efficiency cooling capacity(10㎡/RT).
- Easy maintenance & reliable operation.
- Low noise level by specific motor.
- Soundproofe case (option type).
- High quality & efficiency.
■ Calculation method of the air condenser capacity
■ Correction factor[ F ]
* Q : Condensing capacity
* R : Cooling capacity
* AW : Compressor power
(kw×860)(kcal/H)
* F : Correction factor
■ AIR CONDENSER M-TYPE SPECIFICATION
| MODEL | CAPACITY (Kcal/H) |
TRANSFER AREA(M2) | AIR COLUME (CMM) |
FAN (mm) |
FAN MOTOR SET(KW*P*EA) | EXTERNAL SIZE(H*W*L) |
| KAC-M12(3R/T) | 10,500 | 35.4 | 60 | φ550 | 0.4*6*1 |
1020*730*1561 |
| KAC-M20(5R/T) | 17,500 | 56.7 | 112 | φ450 | 0.2*6*2 | 1180*790*1661 |
| KAC-M31(7.5R/T) | 26,250 | 86.3 | 168 | φ500 | 0.2*6*2 | 1270*850*1610 |
| KAC-M41(10R/T) | 35,000 | 109 | 196 | φ550 | 0.4*6*2 | 1370*900*1712 |
| KAC-M49(12R/T) | 42,000 | 128 | 245 | φ600 | 0.4*6*2 | 1570*940*1712 |
| KAC-M61(15R/T) | 52,500 | 156 | 300 | φ650 | 0.75*6*2 | 1670*990*1814 |
| KAC-M73(18R/T) | 63,000 | 180 | 340 | φ550 | 0.4*6*3 | 2120*960*1712 |
| KAC-M79(20R/T) | 70,000 | 204 | 376 | φ600 | 0.4*6*3 | 2120*960*1964 |
| KAC-M97(25R/T) | 87,500 | 259 | 465 | φ650 | 0.75*6*3 | 2270*1010*1862 |
| KAC-M118(30R/T) | 105,000 | 315 | 570 | φ700 | 0.75*8*3 | 2420*1070*1964 |
■ 경동냉열산업의 콤푸레샤 마력에 따른 각종 Model선정표(I,V,U,M형)
| 실온 ＼ MODEL | 08 | 12 | 16 | 20 | 24 | 31 | 37 | 41 | 49 | 61 | 73 | 81 | 102 | 122 |
| AIR CONDITION&HEAT PUMP | 2HP | 3HP | 5HP | 7.5HP | 10HP | 15HP | 20HP | 30HP | ||||||
| ±5℃ | 3HP | 5HP | 7.5HP | 10HP | 15HP | 20HP | 30HP | |||||||
| -10℃ 이하(below) | 3HP | 5HP | 7.5HP | 10HP | 15HP | 20HP | 30HP |
