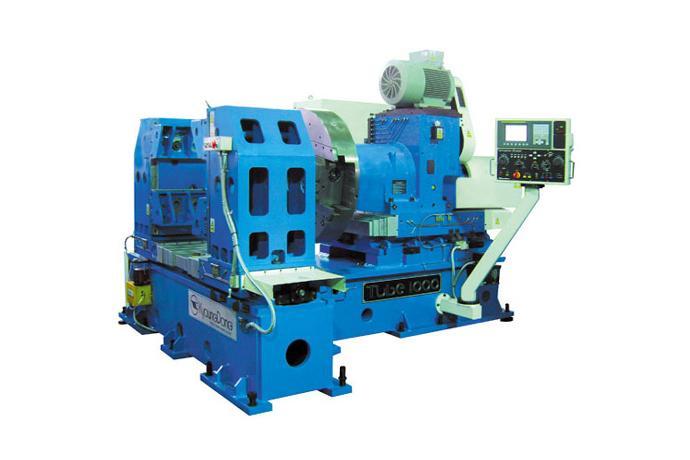

Pipe-end Facing Machine
High productivity which is provided at the best cost.
Feature
•KYOUNG DONG's Facing Machine is an all-purpose facing machine of cross-head type endowed with modernity developed by rich ideas and excellent technology.
A wide range of workings can be made including pipe and tube ends, pipe outside diameter surfaces, joint flange surfaces, etc. and preparation and centering are very easy because the facing head is freely movable to fit the part of the material to be cut.
•They are good at working pipe end facing for medium or small diameter pipe.
Specification
|
Description
|
unit
|
Tube 1000A
|
Tube 1600A
|
Tube 2000A
|
|
Cutting Diameter
|
inch
|
16" ~ 40"
|
16" ~ 62"
|
32" ~ 80"
|
|
Cutting Thickness
|
mm
|
100
|
200
|
200
|
|
Face Plate Diameter
|
mm
|
1020
|
1240
|
1240
|
|
Spindle R.P.M
|
r.p.m
|
10 ~ 60
|
10 ~ 60
|
10 ~ 60
|
|
Main Motor
|
kw
|
22
|
22
|
22
|
|
X-axis Motor(Servo)
|
kw
|
3.5
|
3.5
|
3.5
|
|
Z-axis Motor(Servo)
|
kw
|
5
|
5
|
5
|
|
X-axis Distance
|
mm
|
180
|
180
|
180
|
|
Z-axis Distance
|
mm
|
200
|
200
|
200
|
|
X-axis Rapid
|
m/min
|
0.5
|
0.5
|
0.5
|
|
Z-axis Rapid
|
m/min
|
1.8
|
1.8
|
1.8
|
|
Control Source
|
V
|
220
|
220
|
220
|
|
Dimension
|
Length
|
mm
|
2850
|
2400
|
2400
|
|
Width
|
mm
|
2440
|
2200
|
2400
|
|
Height
|
mm
|
2150
|
1660
|
2660
|
|
Weight
|
kg
|
9000
|
10000
|
12000
|
