제품명

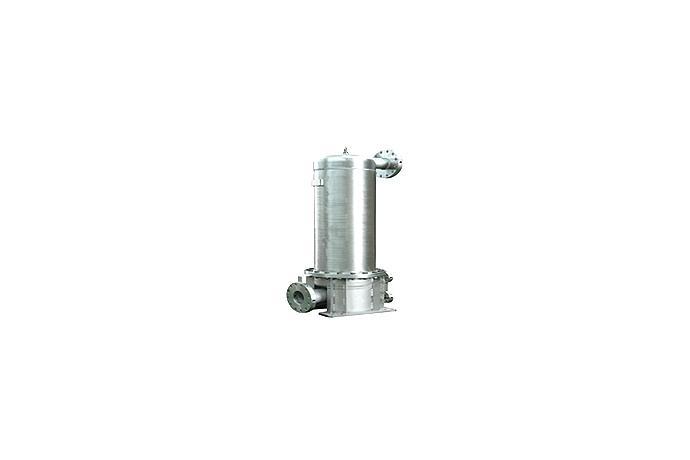

Cargo Deck Heater
모델명
KCH-200, KCH-360, KCH-500, KCH-700, KCH-1250
사이즈
-
중량
-
제품 상세 정보
일반적으로 Submerged Cargo Pump가 설치된 선박의 경우 Cargo tank 내 Heating coil을 설치하지 않고 선박의 Deck위에 Cargo Deck Heater를 설치하여 Cargo tank내 유체를 Pumping 할 수 있는 조건으로 만들어 줍니다.
Characteristics
▣ Advantage
Easy Installation & Labor cost saving
Easy Maintenance
Saving Energy
Free from the cargo damage
Rigid structure against vibration
▣ Cargo Deck Heater Data
| Heat capacity for HFO No.6 | KCH – 200 200kw at 50㎥/h Saturated steam at 7bar / 170℃ |
KCH – 360 360kw at 80㎥/h Saturated steam at 7bar / 170℃ |
KCH – 500 500kw at 180㎥/h Saturated steam at 7bar / 170℃ |
KCH – 700 700kw at 200㎥/h Saturated steam at 7bar / 170℃ |
KCH – 1250 1250kw at 300㎥/h Saturated steam at 7bar / 170℃ |
| Max. P/Temp. Cargo side | 15.7bar / 100℃ | 15.7bar / 100℃ | 15.7bar / 100℃ | 15.7bar / 100℃ | 15.7bar / 100℃ |
| Max. P/Temp. Heating medium side |
9.8bar / 185℃ | 9.8bar / 185℃ | 9.8bar / 185℃ | 9.8bar / 185℃ | 9.8bar / 185℃ |
| Length of steam element plate | 1078mm | ||||
| Number of elements | 16EA | 22EA | 24EA | 36EA | 54EA |
| Heating surface | 5.3㎡ | 7.7㎡ | 8.4㎡ | 12.4㎡ | 17.8㎡ |
| Material | 316L | ||||
| Heating medium type | Saturated steam or Hot water | ||||
| “TW” Total Width | 700mm | 800mm | 800mm | ||
| “W” Width | ￠ 406.4mm | ￠ 508.0mm | ￠ 508.0mm | ||
| “H1” Height | 175mm | 222mm | 222mm | ||
| “H2” Height | 139.1mm | 1401.2mm | 1401.2mm | ||
| “H3” Height | 1686mm | 1925mm | 1925mm | ||
| Total weight dry heater | 336kg | 365kg | 464kg | 498kg | 550kg |
| Cover weight | 82kg | 82kg | 91kg | 91kg | 91kg |
