Stainless Tube and Tube Cut
모델명
-
사이즈
-
중량
-
제품 상세 정보

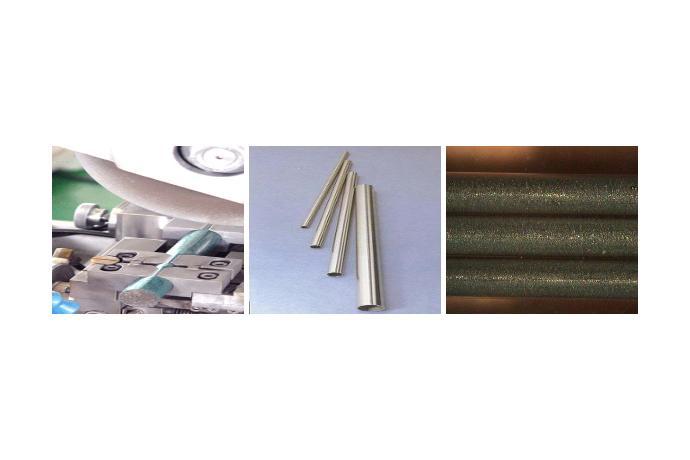

KOVAC Med’s Tube is made from high quality Stainless steel with excellent quality.  Standard size for tube is from 13G to 30G, but we are able to provide special sized tube.



Available type of Wall thickness are

RW – Regular Wall

TW – Thin Wall

XTW – Extra Thin Wall

UTW – Ultra Thin Wall



We can also provide cut tube with excellent quality at competitive price.  Tubes are cut to the size customer required and cleaned perfectly.

Our cut tubes are:

Precision, Square and Burr-Free Cut
Ultrasonically Cleaned and Passivated
Specially Flow-Thru Washed
Packaged in easy to use box



Following is our standard Tube size we are now using.

We are also offering custom tube size made to order of our customer.

Gauge

Outer Diameter(mm)

Intter Diameter(mm)

Wall Thickness

Length

Package

avg

min

max

avg

min

max

meter

meter

14G

2.11

2.082

2.133

1.77

1.75

7.79

0.170±0.015

2

1,000

15G

1.83

1.816

1.841

1.51

1.490

1.530

0.160±0.015

2

1,000

16G

1.65

1.638

1.663

1.35

1.330

1.370

0.150±0.015

2

2,000

17G

1.47

1.460

1.485

1.17

1.150

1.190

0.150±0.015

2

2,000

18G

1.27

1.257

1.282

0.99

0.970

1.010

0.140±0.015

2

2,000

19G

1.07

1.054

1.079

0.79

0.77

0.810

0.140±0.015

2

4,000

20G

0.91

0.900

0.914

0.64

0.620

0.660

0.135±0.015

2

5,000

21G

0.82

0.812

0.825

0.56

0.540

0.580

0.130±0.015

2

5,000

22G

0.72

0.711

0.723

0.46

0.440

0.480

0.130±0.015

2

5,000

23G

0.64

0.635

0.647

0.41

0.395

0.425

0.115±0.010

2

5,000

24G

0.56

0.558

0.571

0.34

0.315

0.355

0.110±0.010

1.5

10,000
