Our dynamic solutions are ideal when palleted goods need to be stacked and retrieved as quickly as possible.

Drive-through racking is recommended when you operate using the FIFO method and want to move a large number of identical pallets. With this system, the stacked goods move forward automatically to the retrieval point.

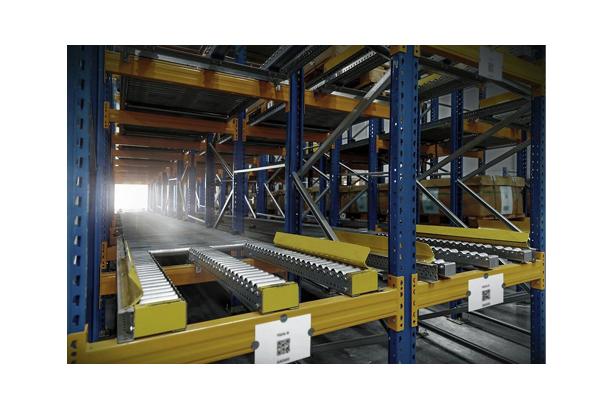

This goods-to-person method saves on unnecessary travel and the benefit is that the goods do not age. This makes drive-through racking ideal for transporting perishable goods with a short best-before date. The structure of the drive-through racking comprises racking uprights connected together to form a channel.

One side is used for storing; the other side is for retrieval. When a pallet is retrieved, the next one automatically moves along the slightly inclined roller conveyor. Brake rollers control the speed and an automatic separator makes sure that products don't get jammed.



✔ Optimum use of space with dynamic block storage

✔ Greater efficiency: Separation of loading and removal

✔ Shorter internal transport distances

✔ Time saved through goods replenishment automatically

✔ Monitoring of best-before dates and production series





Features

System principle

• Various storage modules adapt to all circumstances.
• Standard structural elements employ the modular principle.
• Can be combined with other Jungheinrich racking.



Individual sector solutions

• Advice from experts with sound sector experience.
• Tailored solutions for various sectors, e.g. grocery sector, wholesale, production industry and many more.



High utilization of space

• Compact storage system making efficient use of the space available as fewer aisles are required.
• Save up to 50 % of the floor area.



Efficient working

• Faster order picking thanks to shorter routes.
• Order picking in a single aisle minimizes errors.
• Goods-to-person principle for faster processes.
• Reduced transport routes.
• Constant material supply for the production process.



High-quality Jungheinrich pallet racking

• Independent test rigs at the production facilities ensure constant quality at all sites worldwide.
• RAL quality seal: Regular inspection of quality and safety according to stringent guidelines by an independent institute.



Safety accessories

• Speed controller prevents uncontrolled pallet movement.
• Safe retrieval of the first pallet thanks to the safety separator.
• The entry guide ensures the pallet is optimally positioned in the channel.



High process reliability

• Minimal maintenance effort due to the use of gravity.
• Disruption-free system.
• Separate stacking and retrieval mean reduced traffic, which avoids accidents.
