Narrow-aisle multi-bay racking is a giant among racking systems. They are particularly suitable for large quantities of individual, mainly palletized items and can be flexibly implemented for bay loads of up to 45 t.

These systems show their strength in situations where high throughput is required in a small space. They offer all the performance features of multi-bay racking, such as direct access and flexible arrangement of shelves, but require less space and enable extreme lift heights.

These systems are characterized by their narrow aisle widths. The easy-to-adjust shelf supports and optional double-depth storage enable even more efficient use of the space available.

They can be operated using rail or wire guidance, semi-automated or fully automated narrow aisle trucks, and sometimes also stacker cranes.



✔ Narrower aisle widths for greater utilization of space

✔ Direct access to all items

✔ Flexible beam arrangement for a high level of adaptability\

✔ Easy to erect with few components

✔ Achievable with bay loads up to 45 t





Features

System principle

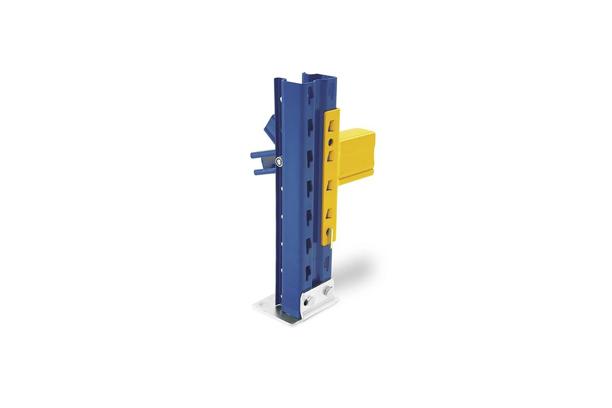

• System bore holes for quick and easy adaptation to new circumstances.
• Standard structural elements employ the modular principle.
• Can be combined with other Jungheinrich racking.



A comprehensive range of accessories

• Chipboard floor.
• Galvanized mesh.
• Markings.



Individual sector solutions

• Advice from experts with sound sector experience.
• Tailored solutions for various sectors, e.g. grocery sector, wholesale, production industry, and many more.



High utilization of space

• Less floor space is required for working aisles thanks to great lift heights.
• Up to 30% more usable space compared with the wide-aisle version.
• Use of narrow-aisle trucks with lift heights of more than 18 meters.
• Option of incremental upgrade to fully automatic system.



Efficient working

• Direct, targeted access to every pallet.



High-quality Jungheinrich pallet racking

• Independent test rigs at the production facilities ensure constant quality at all sites worldwide.
• RAL quality seal: Regular inspection of quality and safety according to stringent guidelines by an independent institute.



Safety accessories

• Depth supports for safe and fast stacking and retrieval.
• Bumper to avoid collision damage, e.g. in corner areas or on racking uprights.
• Backstop to avoid load units being pushed though inadvertently.
• Load guard to prevent falling out at the rear.



High level of operational safety

• From the planning stage: Consideration of increased safety requirements in the narrow-aisle warehouse.
• Warning systems prevent people from having accidents in the narrow aisle.
