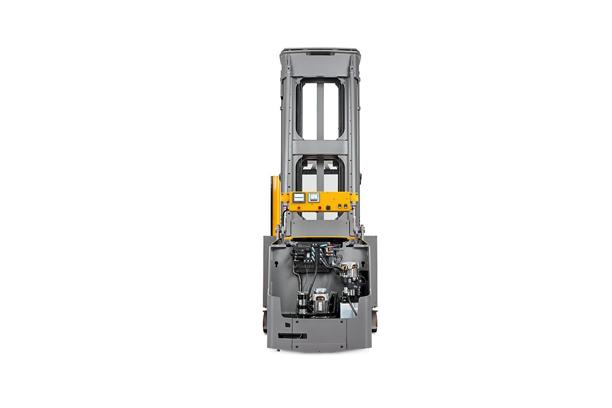

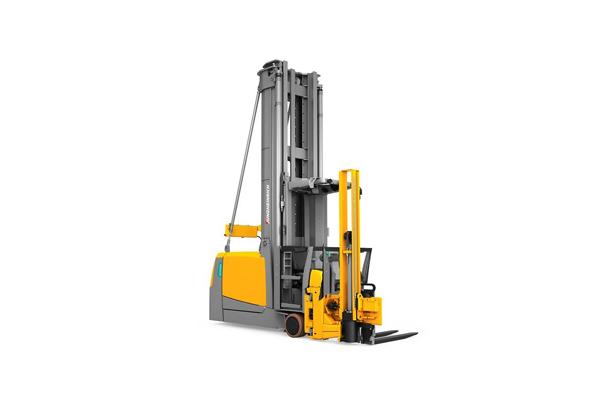

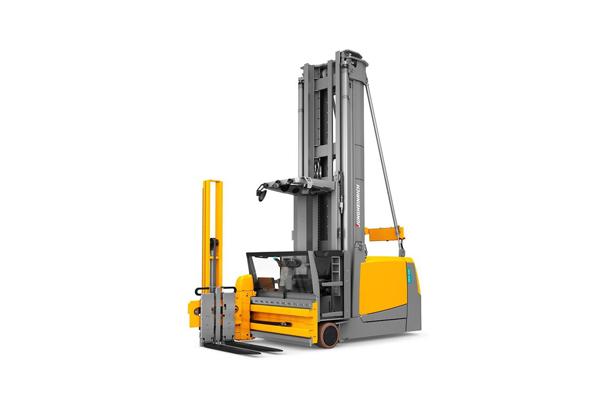

Our powerful and modular EKX 516a excels as an Automated Guided Vehicle System (AGV-S) based on our proven EKX electric high-level combination order picker/three-lateral stacker.

The EKXa is characterized by a maximum performance at lift heights up to 13,000 mm and sets benchmarks in automated narrow-aisle warehouses.

Equipped with an 80-V drive system and a maintenance-free synchronous reluctance motor, it achieves new performance standards while reducing energy loss at the same time.

Thanks to the optional integration of an onboard battery charger, bus bar, and current collector, it is optimally prepared for 24/7 use.

The field-tested wire guidance in combination with RFID transponders ensures precise positioning at the storage location as well as automatic aisle changes.

With the option of automation in stages, you can benefit from the maximum availability, efficiency, and performance of your warehouse processes.



✔ Gradual automation

✔ Maintenance-free synchronous reluctance motor

✔ Different options for pallet stacking and retrieval

✔ Optional on-board battery charger for 24/7 operation

✔ Planning, implementation, and after sales support from a single source





Features

Established standard truck used as the basis

• Standard truck EKX Series 5 high-rack stacker
• In combination with extensive safety technology as well as automation and navigation components.



Efficient drive technology and equipment

• 80-V drive.
• Maintenance-free synchronous reluctance motor.
• RFID reader for positioning in narrow aisles.
• Patented regenerative lowering and braking for maximum energy recovery during operation.
• Optional equipment with onboard battery charger, bus bar, and current collector for efficient 24/7 use.



Process reliability in the warehouse

• Reliable wire guidance technology for safe driving anywhere in the warehouse.
• WLAN technology allows the truck to communicate with upstream management and control systems.



Everything in view with the FTS control console

• The graphic display on the AGV control panel displays all the information relating to the AGV in use.
• Depending on the project-specific requirements, individual customer functions can be specially implemented and activated for the respective system.



Precise navigation

• Millimeter-accurate positioning of trucks and loads at the defined stations.
• Project- and environment-specific design and implementation.



Gradual automation

• Successive automation for future-proofing your narrow-aisle warehouse.
• warehouseNAVIGATION for a highly precise approach and positioning of trucks and loads at the defined stations to relieve the operator.
• Semi-automation with warehouseNAVIGATION boosts throughput by up to 25 percent.
• In fully automatic mode, autonomous maneuvering in storage aisles and reliable completion of assigned transport and storage tasks.
• WLAN technology allows the truck to communicate with upstream management and control systems.
