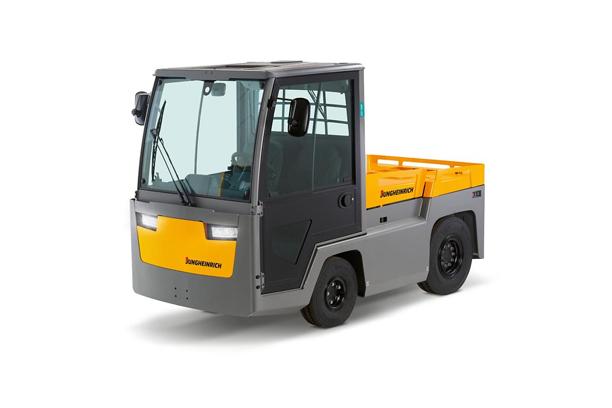

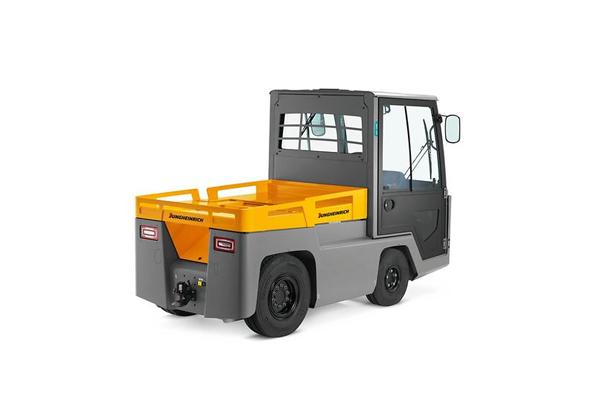

Our robust and extremely powerful high-performance tow tractor EZS 7280 is the best choice for transporting heavy loads, e.g. across the airport apron or in the industry.

It impresses both indoors as well as outdoors over long distances with a maximum pulling performance up to 28000 kg.

Its strengths also come to shine when transporting heavy loads on-ramps: Thanks to automatic parking brake and hill-start assist stopping and starting work effortlessly.

The small turning radius and optional lithium-ion batteries ensure maximum driving efficiency.

The truck offers an ergonomic workstation with low entry, an adjustable steering wheel, and automotive-style pedal configuration.

Furthermore, the cathodic-dip coating of the base frame protects the truck, especially in adverse weather conditions. Various driver cabs are available, optionally with folding or sliding doors.



✔ Automatic parking brake and hill-start assistant for ramps

✔ Comfortable workplace with the automotive pedal arrangement

✔ Small turning radius due to large steering angle

✔ Optimum corrosion protection thanks to cathodic-dip coating

✔ High energy efficiency via two 10 kW drive motors





Li-Ion





Features

Innovative 3-phase AC technology

• More power and performance while simultaneously reducing operating costs due to maintenance-free 3-phase AC technology.
• High-efficiency levels with excellent energy management.
• Powerful acceleration and high travel speeds even with load.
• Rapid direction change.
• Maintenance-free drive motor.
• 2-year warranty on driving motor.

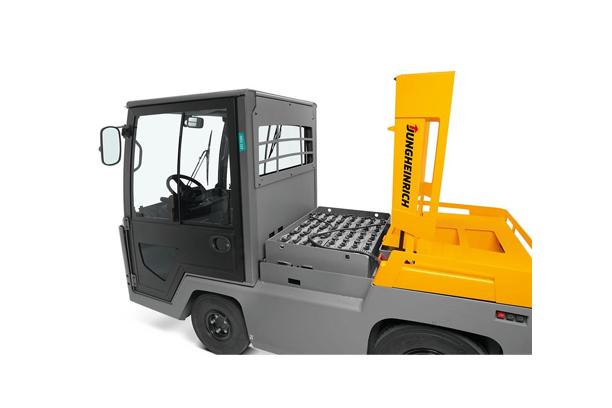

Long operating times with lead-acid battery

• Energy-efficient 3-phase AC technology and high battery capacities allow for long operating times.
• The EZS offers two different wheelbases for different battery sizes with a maximum capacity of up to 930 Ah.



Available with lithium-ion technology

• High availability thanks to extremely short charging times.
• No battery exchange is required.
• Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
• No charging rooms and ventilation required as there is no build-up of gas.



Optional comfort charging system for lithium-ion batteries

• Battery charging system with comfort charging socket and plug for time-saving intermediate charging.
• Enables ergonomic and safe charging during breaks.
• No additional opening of the battery cover.
• Simple and intuitive handling.



Safety in every driving situation

• Comprehensive safety features for high drive dynamics and performance.
• Reduction of travel speed when cornering due to curveCONTROL.
• Generously designed cab with an optimum all-around view.
• The automatic parking brake with roll-back protection: When the truck comes to a halt, the tow tractor, and trailer are automatically secured.
• No roll-back when starting on the ramp thanks to the hill-start assistant.
• Reliable starting on any surface thanks to anti-skid control (ASC).



Robust design for any situation

• Up to 20 mm thick steel frame.
• Cathodic-dip coating of base frame for effective corrosion protection.
• Robust front apron with high corners, an equally robust center front as well as a recessed windscreen.

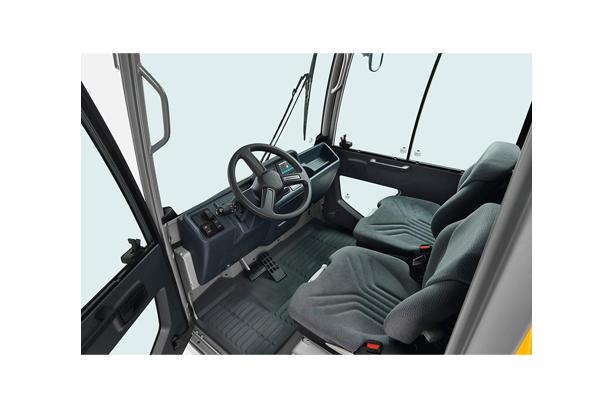

Ergonomic workstation

• Intuitive, automotive-style configuration of the operator workstation.
• Low entry step with level footwell.
• Automotive-style pedal configuration.
• The speed control system relieves the strain on the operator over long distances (optional).
• Easy steering wheel adjustment for operators of different heights.
• The coupling is visible from the operator's seat and is easily accessible.
• Operator-oriented storage concept for intuitive operation.
• The heating ensures a pleasant interior temperature. Its optimized outlet vents prevent fogging of the windows.



Extensive additional features

• Different coupling variants.
• LED front lights.
• SE tires.
• Floor spot.
• Strobe lights and beacons.
• Protective screen for front and rear lights.
• Holder for radio data components.





Model Overview
