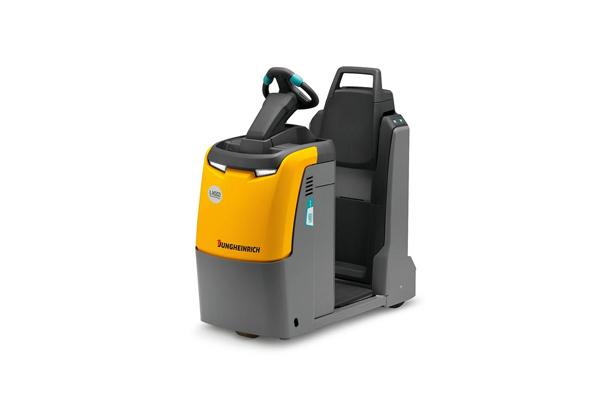

Our versatile and compact EZS 130 is a very slim electric tow tractor for pulling trailers up to 3000 kg.
At just 600 mm wide, it is ideal for maneuvering small parts as part of space-saving tow trains or for the distribution of materials in production areas.
Another benefit is the customization capability: multiple trailers can be coupled together, effortlessly adapting the tow tractor to any application.
A powerful 24 V 3-phase AC motor with impressive acceleration delivers continually high performance at a low rate of energy consumption.
Improved ergonomics and optimization of space for the operator ensure maximum driving comfort, even during long periods of use.
The low stand-on platform for convenient entry and exit, a choice of three travel programs, as well as intelligent assistance systems to boost driving safety enable safe, flexible working in any situation.
✔ Customisable tow tractor for SLC tow trains.
✔ Very narrow construction with 600 mm width.
✔ Reduced energy consumption and greater efficiency.
✔ Improved space and optimized ergonomics.
✔ Extensive range of accessories for a whole host of applications.
Li-Ion
|
No worries. No compromise.
With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.
|
|
100 % satisfaction. Guaranteed.
We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.
|
Features
Intelligent control and advanced drive technology:
- Modern 3-phase AC drive motor for greater performance and simultaneously reduced operating costs.
- High efficiency with excellent energy management.
- Powerful acceleration and high top speed.
- Regenerative braking with energy recovery.
Long operating times with lead-acid battery power:
- Built-in charger (24 V / 30 A) for wet cell batteries and maintenance-free batteries for easy charging at any 230-V mains socket (optional).
- Battery size up to 200 Ah.
Available with lithium-ion technology
- High availability thanks to extremely short charging times.
- No battery exchange is required.
- Reduced costs compared to lead-acid batteries due to longer service life and maintenance-free operation.
- No charging rooms and ventilation are required as there is no build-up of gas.
Optional comfort charging system for lithium-ion batteries
- Battery charging system with comfort charging socket and plug for time-saving intermediate charging.
- Enables ergonomic and safe charging during breaks.
- No additional opening of the battery cover.
- Simple and intuitive handling.
Comfortable and safe operation:
- Low stand-on platform for frequent and effortless entry and exit.
- Safe cornering speed through curve control.
- The programmable crawl speed button allows travel at reduced speed.

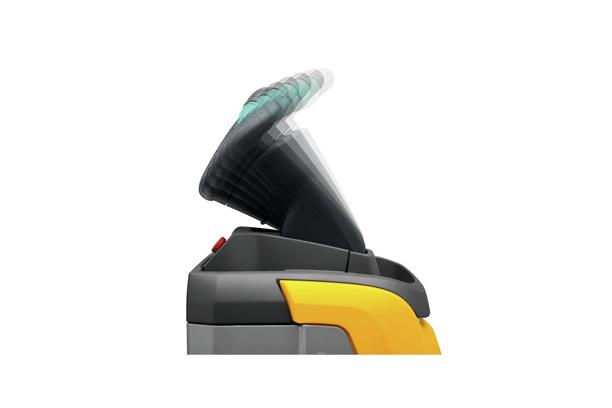

- Electric steering with jetPILOT steering wheel.
- CSE load wheels for great driving comfort.
Visibly better:
- Integrated dayLED daytime running lights for better visibility in poorly lit areas (optional).
- Floor-Spot for significantly reducing the risk of collisions in blind spots due to a red or blue dot of light on the floor (optional).
Always informed:

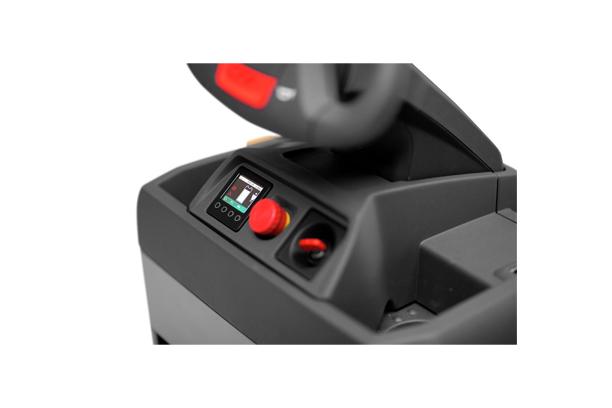

- 2-inch display showing battery charge status, number of operating hours, and travel speed as well as error codes.
- Possible choice of 3 travel programs via soft key (optional).
- Activation of the truck by EasyAccess via soft key, PIN code or optional transponder card.
Robust and compact design:
- Very narrow design width of only 600 mm for narrow aisles and confined spaces.
- Frame made of high-quality sheet steel and impact-resistant drive panel.
- Extra-high frame apron on front cover.
- Robust LED lights (optional).
Additional features:
- A comprehensive range of accessories for individual adaptation to a variety of applications.
- Various couplings are available.
- Reversing/inching control for comfortable coupling and decoupling.
- Electric supply connections for our GTE trailers.
- Sturdy, universally applicable options bracket, for e.g. radio data transmission components.
- Further options are available for appropriately configuring the tow tractor.
Model Overview
Model |
Towing capacity load |
Travel speed |
Overall length |
Battery voltage |
EZS 130 |
3,000 kg |
10.5 km/h |
1,315 mm |
24 V |
