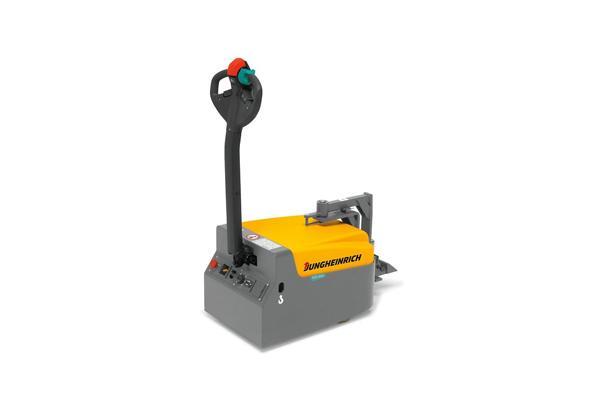

Our compact and versatile mini tow tractor EZS 010 is the perfect helper for effortlessly towing trailers of up to 1000 kg.

It is ideally suited for the economic, fast, and easy transport of loads in confined spaces or working with tow trains.

From the supermarket to the hospital – wherever smaller loads have to be transported over short distances, the advantages of the truck are especially compelling: A 24-V 3-phase AC drive motor ensures high energy efficiency, the drive tire is protected by the chassis and an optimally visible, easily accessible coupling provides maximum safety.

In addition, various coupling systems are available for many different trailer types.

The clear and extremely handy construction enables turning on the spot and the ergonomic safety tiller arm as well as three selectable travel programs make working with our mini tractor highly efficient and pleasant.



✔ Extremely agile and compact

✔ Maintenance-free 24-V 3-phase AC drive motor

✔ Ergonomic safety tiller arm

✔ Built-in charger for recharging at any mains socket

✔ Diverse coupling systems for different trailer types





Features

Innovative 3-phase AC technology

• More power and performance while simultaneously reducing operating costs due to maintenance-free 3-phase AC technology.
• High-efficiency levels with excellent energy management.
• Powerful acceleration.
• Maintenance-free drive motor without carbon brushes.
• 2-year warranty on driving motor.
• Easy access to all parts inside a one-piece front panel with just two screws.
• Excellent protection against dirt, dust, and humidity through IP 54 enclosure of controller and plugs.



Efficient operation

• Easy recharging at any mains socket using the built-in charger.



Always informed

• Extensive display and setting instruments always provide a complete overview.
• Combined discharge indicator (3 color LED) with load status display.
• CanDis (optional) provides information on the battery discharge status, number of operating hours and error codes.
• Activation of the truck via PIN code and selection of 3 travel programs via keypad (optional).
• Adjustable travel parameters via CanDis and CanCode (optional).



Work ergonomically

• The tiller arm is optimally adapted to the ergonomic needs of the operator.
• Color coding and buttons with countersunk/raised shape for intuitive operation.
• Grip position optimally adapted to the operator's hand posture.
• Easy accessibility of the crawl speed button when traveling with the vertical tiller.
• Contactless sensor system with IP 65 protection, hence the lowest risk of breakdown.
• Rocker switch for consistent operation in all tiller positions.



Individual coupling solutions

• Individual coupling solutions enable the truck to be used with a range of trailer types. Both standard
• couplings (e.g. single plug couplings), as well as modified couplings, can be used.
• Standard couplings are attached to the chassis if the trailer has its own steering.
• The coupling arm can be used with a modified receptacle for non-self-steering trailers. This ensures easy steering and effortless movement of trailers.





Model Overview
