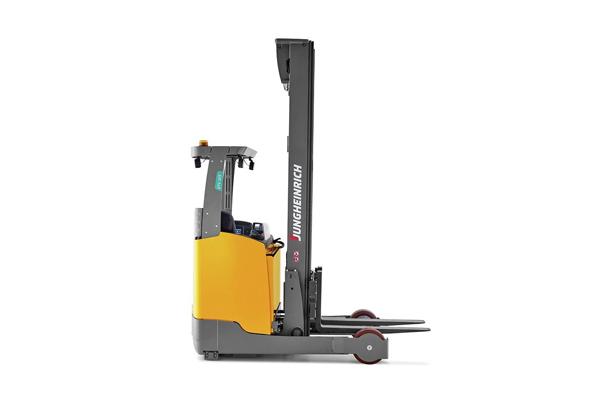

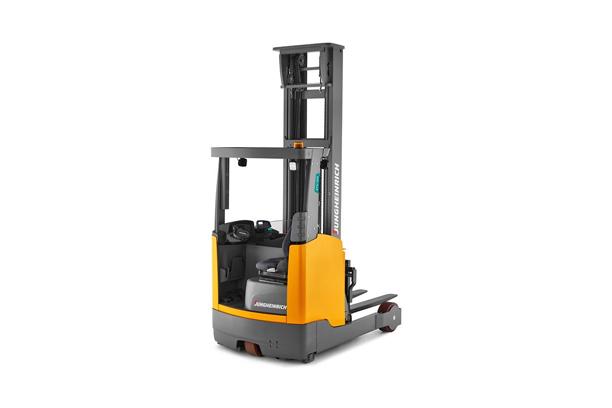

Our stable and powerful Series 3 reach trucks convince with their robust frame, generous wheel diameters and an extremely robust mast. They can easily lift loads to heights of up to 14 metres.
While the ETV truck can accommodate Euro pallets between its support arms, the narrower design of the ETM offers tremendous advantages in drive-in racking and block warehouses.
You can significantly benefit from higher throughput with reduced energy consumption, reduced mast sway during stacking and retrieval, and accelerated fork lowering with the loweringPRO option.
Advanced lithium-ion batteries with a long service life, fast booster charging and zero maintenance guarantee long-lasting performance.
Equipment options such as the panoramic roof or video control for high lift heights complete this superior package.
✔ Extremely stable design for high residual capacity
✔ Electric load wheel brakes for increased safety
✔ 180° and 360° steering for flexible manoeuvring
✔ loweringPRO option for optimization of the lowering speed
✔ Tailor-made optional features for all applications
Li-Ion
|
No worries. No compromise.
With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.
|
|
100 % satisfaction. Guaranteed.
We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.
|
Features
Available with lithium-ion technology
- High availability thanks to extremely short charging times.
- No battery exchange is required.
- Save costs with longer service life and maintenance-free operation.
- Neither charging rooms nor ventilation is required as there is no build-up of gas.
High-performance mast
- Maximum safety and effective utilization of warehouse capacity up to extreme heights.
- Triplex masts with lift heights up to 14,000 mm.
- Excellent visibility of the load.
- Low clearance heights with high lift heights.
- High residual capacities even at extreme lift heights.
- Optional, active mast vibration cushioning reduces mast sway when stacking and retrieving.
loweringPRO
- The loweringPRO option enables maximum performance by doubling the lowering speed to up to 1.2 m/s.
- The smooth mast transfer guarantees the lifting and lowering of goods with maximum safety (optional).
Wide range of assistance systems and options
- operationCONTROL continuously measures the load weight and issues a visual warning on the operator display as well as an audible warning when the residual capacity limit is approached.
- positionCONTROL with SNAP function enables simple and fast stacking without additional pressing of buttons.
- liftNAVIGATION automatically transfers stacking orders from the warehouse management system.
- Fork camera and ergonomically adjustable motor enable especially safe and efficient stacking and retrieval.
EasyAccess
- Keyless access system via softkey, PIN code or optional transponder card.
4-Inch full-colour display
- Display of direction of travel and wheel position.
- Battery status, with display of time remaining until the next charge required.
- Three adjustable travel programs for individual adjustment to any requirements.
- Operating hours and time of day.
- Lift height (optional).
- Load weight (optional).
Option packages for different operating conditions
- Efficiency for long operating times with one battery.
- drivePLUS for frequent travel over long distances.
- liftPLUS for greater lift speed and increased productivity.
- drive&liftPLUS for maximum productivity with optimum energy consumption.
- Holder for, e.g., radio data terminal, writing board or video monitor.
Ergonomic cockpit
- Generous space, even for tall operators.
- All the controls are within the operator’s field of vision and are clearly designated for each specific function.
- Travel direction switch, features intuitive direction change.
- Precision operation due to sensitive control of all functions.
- Optimum control of additional attachments, e.g. an optional fork positioner.
- multiPILOT control lever optionally available.
Model Overview
Model |
Load capacity |
Lift height |
Travel speed |
Overall length |
Battery voltage |
ETV 318 |
1,800 kg |
11,510 mm |
11 km/h |
2,456 mm |
48 V |
ETV 320 |
2,000 kg |
14,000 mm |
11 km/h |
2,466 mm |
48 V |
ETM 325 |
2,500 kg |
11,510 mm |
0 km/h |
2,712 mm |
48 V |
ETV 325 |
2,500 kg |
13,000 mm |
0 km/h |
2,546 mm |
48 V |
