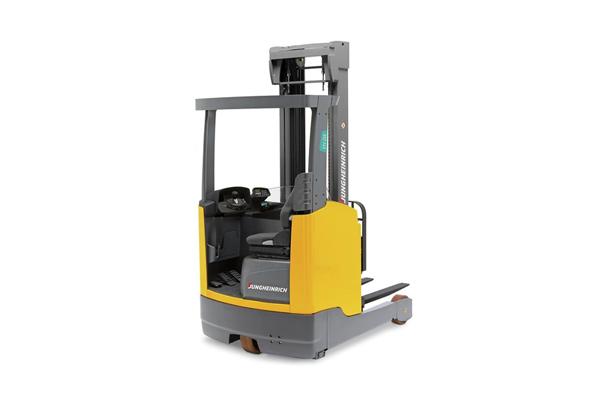

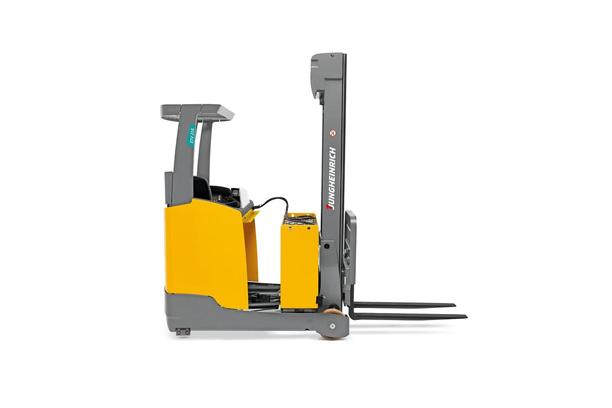

Speed up your warehouse operations with our powerful and flexible Series 2 reach trucks: Travelling at speeds of up to 14 kilometers per hour, our ETV trucks ensure impressive performance in the drive-through, pallet, or drive-in racking, as well as in single-shift and multi-shift operations.

The Series 2 ETM is your first choice for drive-in racking or block warehouses due to its narrower design.

Low working widths thanks to narrower aisle widths enable flexible travel characteristics. The ergonomic workstation with intuitive, comfortable handling via the operator's display allows effective working. You can significantly benefit from higher throughput while reducing energy consumption.

The very latest drive and control technology as well as individually selectable battery variants make our reach trucks the most economical partners for every application.



✔ Compact design for narrow working aisles

✔ High residual capacity for maximum throughput

✔ 180° and 360° steering for flexible manoeuvring

✔ soloPILOT control lever for sensitive stacking

✔ Various tailor-made optional features





Li-Ion





Features

High-performance mast

• Maximum safety and effective utilization of warehouse capacity up to great heights.
• Triple masts with lifting heights up to 14,000 mm.
• Excellent visibility of the load.
• Compact design and small working aisle on the ETV 210 / 212.
• Small clearances at high lift heights.
• High residual capacities up to large lifting heights.
• Reduced mast sway during stacking and retrieval due to optional patented mast advance damping.



Available with lithium-ion technology

• High availability thanks to extremely short charging times.
• No battery exchange is required.
• Cost savings due to longer service life and low maintenance compared with lead-acid batteries.
• No charging rooms and ventilation are required as there is no build-up of gas.



Optional assistance systems

• operationCONTROL continuously measures the load weight and compares it with the residual capacity of the truck. An optical warning on the operator display as well as an acoustic warning are triggered when approaching the limit value.
• positionCONTROL with SNAP function enables simple and fast stacking without additional pressing of buttons.
• liftNAVIGATION transfers stacking orders automatically from the warehouse management system. This prevents stacking errors.
• Fork camera and ergonomically adjustable motor enable especially safe and efficient stacking and retrieval.



EasyAccess

• Keyless access system via softkey, PIN code or optional transponder card.



4-inch full-colour display

• Display of direction of travel and wheel position.
• Battery status, with a display of time remaining until the next charge is required.
• Three adjustable travel programs for individual adjustment to any requirements.
• Operating hours and time of day.
• Lift height (optional).
• Load weight (optional).



Option packages for different operating conditions

• Efficiency for long operating times with one battery.
• drivePLUS for frequent journeys over long distances.
• lift plus for greater lift speed and increased productivity.
• drive&liftPLUS for maximum productivity with optimum energy consumption.



Ergonomic workstation

• Generous space, even for tall operators.
• Electric steering, available in 180° or 360° mode.
• When driving in a straight line, the steering wheel spinner knob is always at the optimum ergonomic position.
• Optional panorama overhead guard provides a clear view of the raised load.
• Fabric seat with adjustment options for seating position, backrest, and body weight.
• Important controls within easy reach.
• The automotive layout of the pedals.
• Plenty of storage options.
• Holder for, e.g., radio data terminal, writing board, or video monitor.



Ergonomic cockpit

• For activating all hydraulic functions, also selects the direction of travel and the horn.
• All the controls are within the operator's field of vision and are clearly designated for each specific function.
  Travel direction switch features intuitive direction change.
• Sensitive control of all functions for operating accuracy within millimeters.
• Additional attachments, such as an optional fork positioner are also optimally controlled with the solo pilot.
• multiPILOT (optional).





Model Overview
