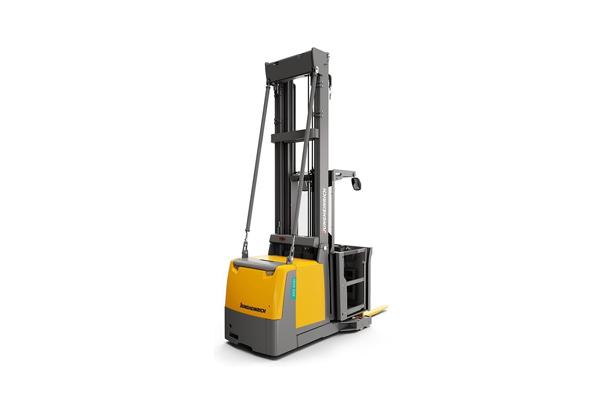

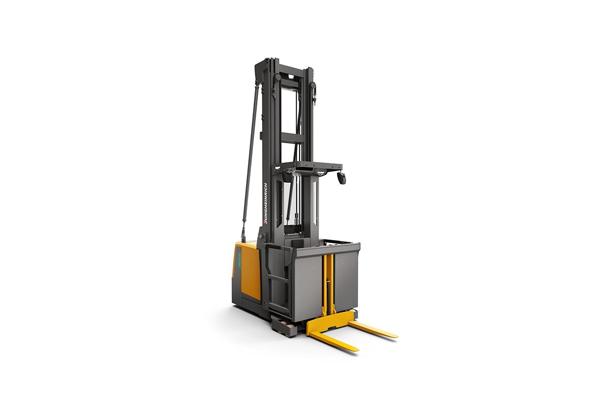

The powerful and efficient EKS 412s medium/high-level order picker masters all tasks convincingly while saving energy, even in high-performance operations.

Ideally suited for use in narrow-aisle warehouses, the EKS also allows you to achieve a significantly higher picking performance.

With an extended mast portfolio, the medium/high-level order picker reaches heights of more than 14 meters. Speed and load capacity can be increased as required with individual performance packages.

The seamless integration of the EKS into your existing Warehouse Management System by means of warehouse navigation and RFID technology allows for significantly faster processes.

At the heart of the new generation is the synchronous reluctance motor, which maximizes efficiency while minimizing energy losses.

Whether with powerful lithium-ion power or lead-acid batteries and our 2Shifts1Charge guarantee: Our EKS enables you to achieve maximum picking performance with optimum space utilization and energy efficiency.



✔ 48-V synchronous reluctance drive for maximum efficiency

✔ Ergonomic and individually adjustable operating concept

✔ Intelligent system connection via logistics interface

✔ Optimum view and visibility in warehouse operations

✔ warehouseNAVIGATION for up to 25% more throughput (optional)





Li-Ion





Features

Maximum picking performance

• Synchronous reluctance motor for maximized efficiency with minimum energy loss.
• 48-V control concept: Increased performance despite compact unit – thanks to fewer cables, fewer plugs, and reduced energy consumption.
• Area-specific speed profile via transponders.



Cost-effective energy management

• Lead-acid batteries with 2Shifts1Charge: Longer operating times with only one battery charge (up to 2 shifts).
• Active energy and battery management.
• Longer battery life.



Available with lithium-ion-technology:

• High availability thanks to extremely short charging times.
• No battery exchange is required.
• Cost savings thanks to freedom from maintenance (when compared to lead-acid batteries).
• No charging rooms or ventilation is required as there is no build-up of gas.



Integrated personal safety and collision protection system PSS Standard, PSS Plus & PSS Anti Collision (optional)

• On-site integration with the safety computer.
• Project planning, commissioning and maintenance by Jungheinrich.



RFID technology (optional)

• Truck control with transponder technology.
• Permanent distance measuring for exact positioning within the warehouse.
• High level of safety due to lift/travel cut-outs.
• Travel speeds are optimized according to the floor topology.



warehouseNAVIGATION (optional)

• Linking the EKS to the warehouse management system (WMS) via radio data terminal or scanner.
• Direct acceptance of the target destination in the narrow aisle on the truck display.
• Automatic vertical- and horizontal positioning.
• The high degree of automation.
• Improved order-picking performance.
• Elimination of incorrect positioning through RFID location detection.



Commissioning and maintenance:

• Fast and reliable commissioning.
• Integrated diagnostic system.
• Maintenance interval of 1,000 operating hours.



Individual, performance-enhancing options

• liftPLUS: Increased lift speed.
• drivePLUS: Increased travel speed.
• capacityPLUS: Increased residual capacity.
• position control : semi-automated approach to the lift height.



Ergonomic workplace:

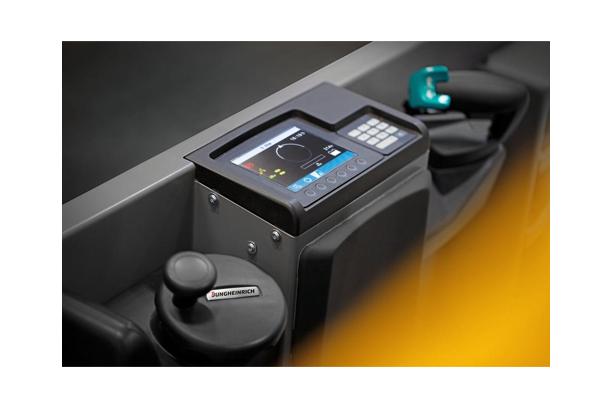

• Optimized operating concept: all information at a glance.
• Best all-round visibility for an overview of every situation.
• Easy entry with low entry height and smooth-running yet robust side barriers.

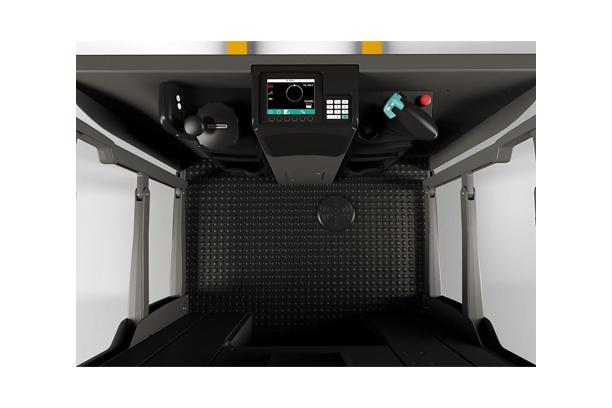

• Spacious cabin with ample storage.
• Ergonomics package with ergonomic floor mat and foot switch optionally available.
