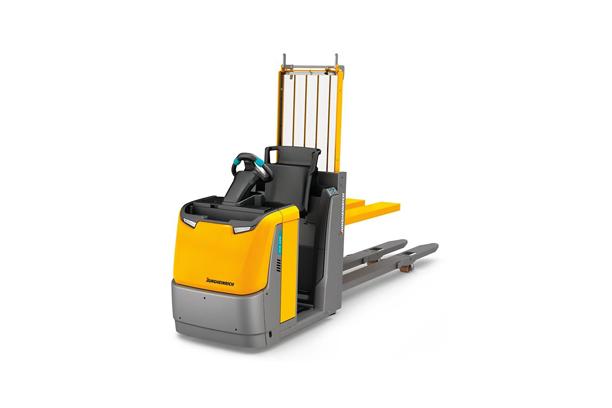

Our robust and versatile ECD 320 low-level order picker works for you with twice the force: the combination of double-length forks with an additional mast lift for the transportation of two pallets allows ergonomic order picking with maximum picking performance and optimum energy efficiency.
The powerful 2.8-kW motor (3.2-kW available as an option) ensures the best driving and acceleration performance.
Thanks to optional lithium-ion technology, it will also keep on powering through the multi-shift operation.
It even shines in tough conditions: dynamic acceleration, safe cornering, and high-end speeds.
Despite its compact dimensions, the order picker offers a spacious, individually adjustable operator position with jetPILOT multifunctional steering wheel for back-friendly and time-saving order picking.
Optimal all-around visibility, easy accessibility of all controls, and additional lighting options ensure safe working.
✔ Maximum picking performance with the lowest energy consumption
✔ Powerful motor with high acceleration
✔ jetPILOT for intuitive operation same as driving a car
✔ Extensive options for an optimal workplace
✔ Ergonomic mast lift up to 700 mm (1500 mm optional)
Li-Ion
|
No worries. No compromise.
With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.
|
|
100 % satisfaction. Guaranteed.
We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.
|
Features
Powerful and efficient drive concept
- Powerful acceleration and high top speed.
- Safe cornering speed due to curve control (optional).
- Optional drivePLUS package with high efficiency 3.2 kW motor for even greater drive and acceleration performance with load-dependent curve control.
- Regenerative braking with energy recovery.
Long operating times with lead-acid battery
- Energy-efficient 3-phase AC technology and high battery capacities allow for long operating times.
- Different batteries are available from 375 Ah to 620 Ah.
- Lateral battery exchange option for multi-shift environments (optional).
Available with lithium-ion technology
- High availability thanks to extremely short charging times.
- No battery exchange required.
- Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
- No charging rooms and ventilation required as there is no build-up of gas.
Rugged construction for the toughest applications
- Impact-resistant steel drive panel.
- High-quality stainless steel skirt raised extra high on the front panel.
- Torsion-resistant load forks with draw bar kinematics prevent distortion, even with heavy loads and long support arms.
Central display and clear instruments for a complete overview
- Activation of the truck by EasyAccess via softkey, PIN code, or optional transponder card.
- The 2-inch display provides information on the battery discharge status, number of operating hours, travel speed as well as error codes.
- Selection from three travel programs via softkey (optional).
Improved visibility
- Better visibility in poorly lit areas thanks to integrated dayLED daytime running lights (optional).
- Floor spot – significant reduction of risk to collide in blind spots due to a red dot of light projected onto the floor approx. 3 m in front of the truck (optional).
Ergonomic and efficient work
- Back-friendly and time-saving order picking.
- Mast lift to 700 mm (1500 mm optional) for depositing goods at an ergonomic height.
Placing a fully picked pallet on the longer initial lift forks for a lower center of gravity and fast continuation of the picking process with a second pallet.
- Load guard (optional) and pallet holder for picking up both pallets before starting the picking process: To do this, one pallet is placed upright on the load guard and fixed with the pallet holder. Once the picking of the first pallet is complete, the order-picking process can be continued directly with the second pallet.
Perfect workstation for maximum picking performance
- Generous space, even for tall operators.
- Diverse and individualized storage options such as the shrink wrap holder on the front cover.
- Backrest versions to suit different needs.
- Additional cushioned stand-on platform (optional).
- Faster order picking thanks to touch mode in the backrest (optional).
Additional optional equipment
- A comprehensive range of accessories allows for individual tailoring to your requirements.
- Additional accessories for working at the second racking level.
- Sturdy, universally applicable options bracket, e.g. for radio data transmission components.
- Increased ease of use with optional sprung stand-on platform to reduce the vibrations felt by the operator.
Model Overview
Model |
Load capacity |
Lift height |
Travel speed |
Overall length |
Battery voltage |
ECD 320 |
2,000 kg |
1,500 mm |
12.5 km/h |
4,081 mm |
24 V |
