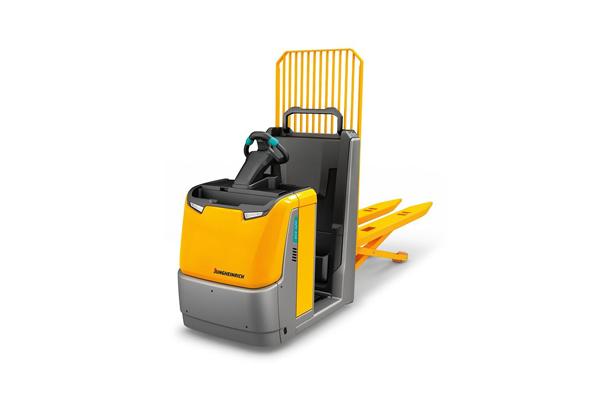

Our powerful and dynamic ECE 320 low-level order picker is the perfect assistant for safe and efficient picking thanks to a lifting load section with a scissor lift for two pallets.

The ergonomic truck concept coupled with a high technical power level guarantees maximum picking performance and optimum energy efficiency.

The highly efficient 3.2 kW motor offers high acceleration and top speed as well as various performance packages for even more picks per hour.

The jet pilot's multifunctional steering wheel allows intuitive, comfortable operations and relieves pressure on the neck and spine.

An individually adaptable workstation offers optimal all-around visibility and makes working easier thanks to the ideal positioning of all operating elements.

The ECE's semi-automatic control provided by a wireless operating unit is ideal for improved picking processes with high-performance requirements, making unnecessary journeys a thing of the past.



✔ Maximum picking performance for loads up to 2000 kg

✔ Powerful motor with high acceleration

✔ jet pilot for intuitive operation same as driving a car

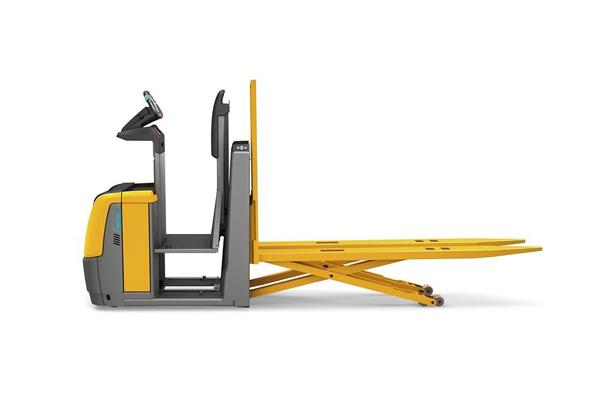

✔ Efficient and safe picking with a scissor lift

✔ Semi-automatic remote control easyPILOT (optional)





Li-Ion





Features

Powerful and efficient drive concept

• Powerful acceleration and high top speed.
• Optional drivePLUS package with highly efficient 3.2 kW motor for even greater drive and acceleration performance.
• Safe cornering speed thanks to load-dependent curve control (optional).
• Optional drive&ecoPLUS package for additional energy saving.



Flexible switching between different control options

• Long distances (from approx. 10 m): Travelling with jet pilot.
• Medium distances: Remote operation with Jungheinrich easyPILOT allows for full focus on the picking process.
• Short distances: Positioning at the correct pallet and fine adjustment, e.g. via touch mode on the backrest (optional).



Available with lithium-ion technology

• High availability thanks to extremely short charging times.
• No battery exchange is required.
• Saving costs due to longer service life and low maintenance in comparison with lead-acid batteries.
• No charging rooms and ventilation are required as there is no build-up of gas.



Comfort charging system for lithium-ion batteries

• Battery charging system with comfort charging socket and plug for time-saving booster charging.
• Simple and intuitive handling.



Hydraulically lifting stand-on platform (HP) (optional)

• For frequent order picking from the second racking level.
• Rapid and safe raising of the operator up to the height of the battery panel.
• Operation of the platform via foot pedal, leaving hands free for order picking.
• The optional jetPILOT can be raised together with the platform (HP-LJ), allowing the truck to be positioned even when the platform is raised.



Improved visibility

• Floor spot – significant reduction of risk to collide in blind spots due to a red dot of light projected onto the floor approx. 3 m in front of the truck (optional).



Rugged construction for the toughest applications

• Impact-resistant steel drive panel.
• High-quality stainless steel skirt raised extra high on the front panel.



Central display and clear instruments for a complete overview

• Activation of the truck by EasyAccess via softkey, PIN code, or optional transponder card.
• The 2-inch display provides information on the battery discharge status, number of operating hours, travel speed as well as error codes.
• Selection from three travel programs via softkey (optional).



Perfect workstation for maximum picking performance

• Various, individually adjustable storage options.
• Additional cushioned and movable stand-on platform (optional).
• Quick lifting of the load through optional double actuation of the lifting button.



jetPILOT multifunction steering wheel

• The intuitive and comfortable operation, similar to a car, with a safe and secure grip.
• Reduced strain on neck and spinal column when cornering.
• One-handed operation and automatic return of the steering wheel to straight-line travel.
• Adjustable to individual body size.



Additional optional equipment

• A comprehensive range of accessories allows for individual tailoring to your requirements.
• Additional accessories for working at the second racking level.
• Sturdy, universally applicable options bracket, e.g. for radio data transmission components.
• Increased ease of use with an optional sprung stand-on platform to reduce the vibrations felt by the operator.
