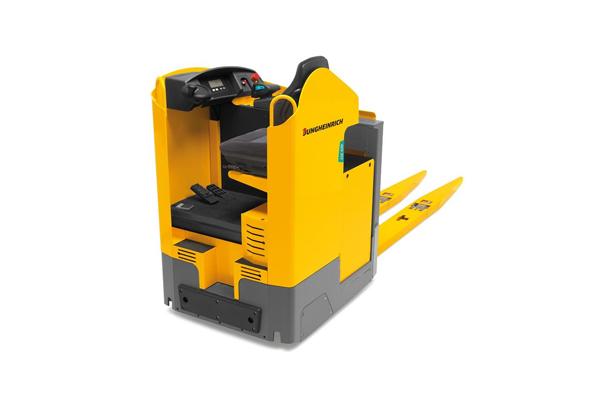

The safe and robust ESE Series 4 electric sideways-seated pallet trucks are ideal for the transport of multiple pallets over longer distances.

Their 48-V 3-phase AC motors ensures dynamic motion sequences and high end speeds for maximum efficiency and goods throughput.

To guarantee smooth processes, the ESE offers a high degree of safety and ergonomics: Speed, brakes and emergency stop switch are all controlled by easily reached pedals.

The lift is easily operated using the soloPILOT control lever, which is readily to hand. The optional height-adjustable footplate and the adjustable steering wheel ensure comfortable sideways seating positions for all operators.

Additionally, the steering mode can be switched between 180° and 360° for easy and quick direction changes. With its extremely high battery capacities and extremely robust construction, the ESE is the ideal truck for intensive and long applications.



✔ Multi-pallet transportation (of up to 3 pallets)

✔ Ergonomic operator position layout

✔ 180°/360° steering for quick direction changes

✔ High travel speeds and 3-phase AC technology

✔ 48-V 3-phase AC technology for dynamic movement





Features

Greater efficiency with 3-phase AC technology

• Powerful acceleration.
• The high degree of operational availability thanks to a maintenance-free drive motor without carbon brushes.
• 2-year warranty on driving motor.



Efficient energy management

• Powerful lead-acid battery: 4 PzS 620 Ah.
• Optimum energy supply with battery power from 375 AH to 500 Ah in the ESE 120 and 465 Ah in the ESE 220 and 320.
• Quick and easy lateral battery exchange.



Robust and safe

• Robust frame for continuous use at full-rated load.
• Torsion-resistant forks manufactured with strong reinforced steel are available in a wide variety.



Lower maintenance costs

• Maintenance-free 3-phase AC drives motor without carbon brushes.
• Easy to service with outstanding accessibility to all components.



Easy-to-read operator display

• High-quality control instrument for displaying the most important operating data. Display of direction of travel and wheel position.
• Steering setting.
• Battery status, with a display of time remaining until the next charge is required.
• Speed.
• Elapsed distance.
• 3 adjustable travel programs for individual adjustment to any requirements.
• Operating hours and time of day.



Ergonomic cockpit

• Adjustable seat (seating position/body weight) for all operators.
• Footplate with an adjustable rake (optional).
• The automotive layout of the pedals.
• Generous space.
• 180°/360° 3-phase AC steering with optimized steering wheel position.
• Steering wheel adjustment



Easy operation with solo pilot

• Activation of all hydraulic functions as well as selecting the direction of travel and activation of the horn.
• All the controls are within the operator's field of vision and are clearly designated for each specific function.
• Precision operation due to control of all functions.
• Comfortable armrest.
