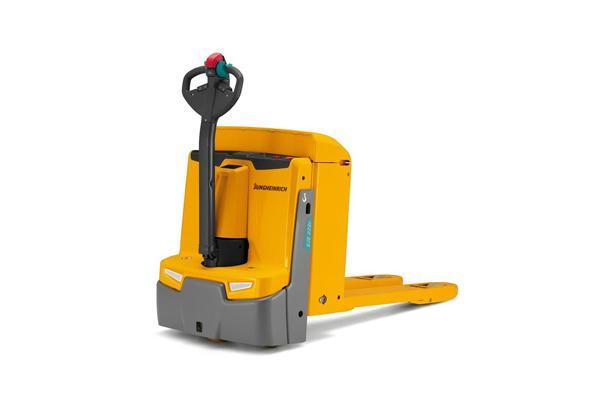

Our robust and powerful EJE 2r electric pedestrian pallet truck is the perfect assistant for efficient loading and unloading of HGVs on the ramp.
A patented ramp lift reliably compensates for any height differences, allowing problem-free loading and unloading of the first row of pallets in the HGV.
A powerful 3-phase AC motor with a high degree of efficiency delivers impressive performance, while state-of-the-art control electronics and a tiller arm perfectly adapted to the operator facilitate safe and intuitive working.
Maximum protection against breakdowns is ensured by the robust frame, reinforced forks and non-contact sensor technology in the tiller arm.
In terms of durability, the EJE pallet trucks convince with long-lasting batteries for intensive applications, low maintenance and reduced wear.
✔ Level compensation due to additional ramp lift.
✔ Long safety tiller with 4-level foot protection.
✔ ProTracLink system for perfect driving stability.
✔ Robust steel frame for high durability.
✔ Quick and easy to maneuver thanks to short front end length.
Li-Ion
|
No worries. No compromise.
With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.
|
|
100 % satisfaction. Guaranteed.
We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.
|
Features
High-performance 3-phase AC technology
- The high degree of efficiency with excellent energy management.
- Powerful acceleration.
- Quick change of direction without delay.
- Two-year warranty on the drive motor.
Professional battery management
- Long operating times with battery capacities up to 375 Ah.
- Multi-shift operation with the optional lateral battery exchange.
- Optional built-in charger for easy charging at any standard 230-volt mains socket.
Available with lithium-ion technology
- Rapid charging function for efficient charging processes during a shift.
- No battery exchange required.
- Cost savings due to longer service life and zero maintenance compared to lead-acid batteries.
- No charging rooms and ventilation required as there is no build-up of gas.
Robust design for the toughest applications
- 7-mm high-grade steel apron on the front of the frame.
- High residual capacities due to reinforced fork construction.
- Two-year warranty on the drive motor.
- Powerful acceleration.
Optimum cornering
- Sprung and cushioned support wheels with ProTracLink torsion bar for optimum support in every driving situation.
- Perfect for use on loading ramps and for loading and unloading of HGVs.
Reduced maintenance costs
- Maintenance-free 3-phase AC motor without carbon brushes.
- Easy access to all components through one-piece front cover secured by 2 screws.
- Excellent protection against dust and humidity through enclosure of controls and plugs as per IP 54.
- Reduced support wheel wear due to patented ProTracLink.
- Optional torsion bar with wide support wheels and wide drive wheel for a safe ride, even with longitudinal joints (e.g. cold store trailers).
Level compensation due to ramp lift
- Patented ramp lift for level compensation on ramps with gradients of up 15%.
- Problem-free loading of first row of pallets in HGVs thanks to additional ramp lift.

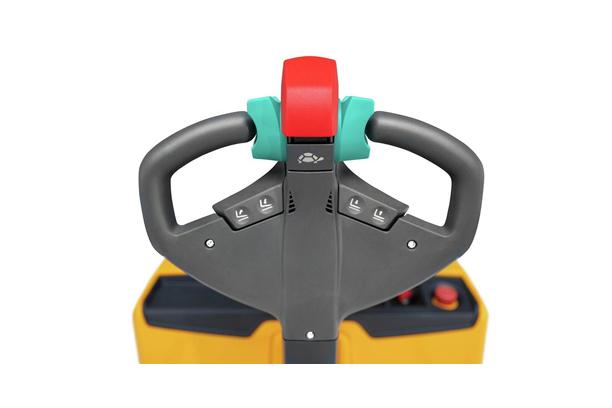

Ergonomic tiller arm
- Optional safety tiller with 4-level foot protection.
- Intuitive operation thanks to a clear colour coding system, buttons with wear-resistant icons and rocker switches for optimum operation in every tiller position.
- Easily accessible crawl speed button on the underside of the tiller arm.
- Excellent protection against breakdown via non-contact sensor technology with IP 65 protection rating.
Always informed
- Optional 2-inch display showing battery charge status, number of operating hours and error codes.
- Choice of 3 travel programs.
- Optional truck activation via key or soft key, PIN code or transponder card.
Additional equipment
- Load guard.
- Cold store version.
- Built-in charger.
- silent drive for quiet operation.
Model Overview
Model |
Load capacity |
Lift height |
Travel speed |
Overall length |
Battery voltage |
EJE 222r |
2,200 kg |
122 mm |
6 km/h |
1,737 mm |
24 V |
EJE 225r |
2,500 kg |
122 mm |
6 km/h |
1,737 mm |
24 V |
