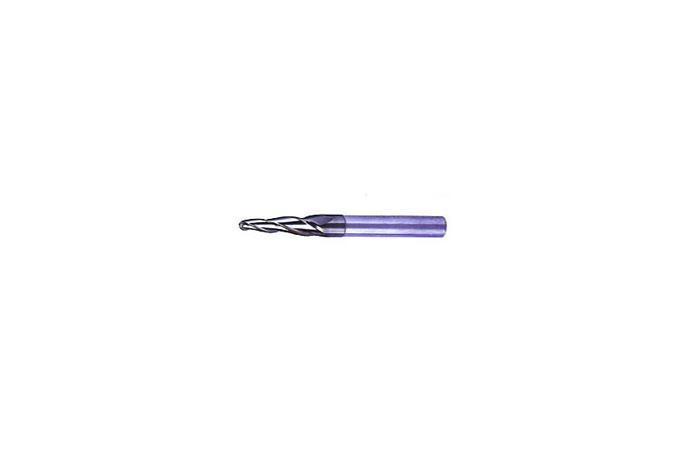

TB504 ○○○○○ series(Solid Type)
|
CODE
|
DIMENSIONS(mm)
|
|
D
|
R
|
θ
|
OAL
|
SH.Dia
|
|
HTBE 4050
|
5
|
2.5
|
3˚
|
60
|
8
|
|
HTBE 4060
|
6
|
3.0
|
3˚
|
70
|
10
|
|
HTBE 4080
|
8
|
4.0
|
3˚
|
75
|
12
|
|
HTBE 4100
|
10
|
5.0
|
3˚
|
75
|
12
|
|
HTBE 4120
|
12
|
6.0
|
3˚
|
90
|
16
|
|
HTBE 4050
|
5
|
2.5
|
5˚
|
70
|
10
|
|
HTBE 4060
|
6
|
3.0
|
5˚
|
70
|
10
|
|
HTBE 4080
|
8
|
4.0
|
5˚
|
75
|
12
|
|
HTBE 4100
|
10
|
5.0
|
5˚
|
90
|
16
|
|
HTBE 4120
|
12
|
6.0
|
5˚
|
100
|
20
|
|
HTBE 4050
|
5
|
2.5
|
7˚
|
70
|
10
|
|
HTBE 4060
|
6
|
3.0
|
7˚
|
75
|
12
|
|
HTBE 4080
|
8
|
4.0
|
7˚
|
90
|
16
|
|
HTBE 4100
|
10
|
5.0
|
7˚
|
90
|
16
|
|
HTBE 4120
|
12
|
6.0
|
7˚
|
100
|
20
|
