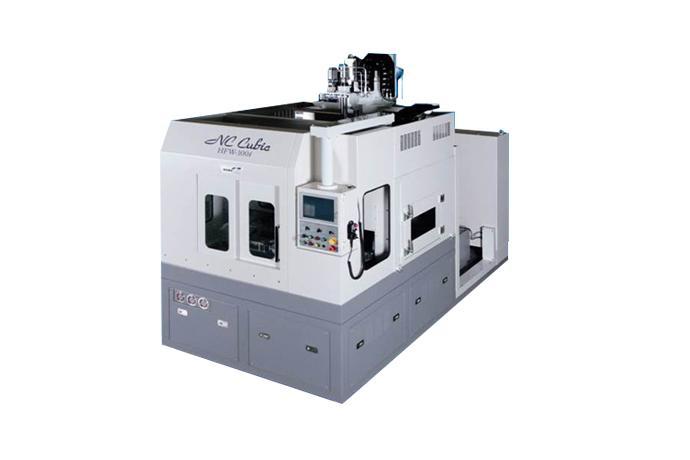

제품 상세 정보
◆ 적용 Work
CYLINDER HEAD, BLOCK, CRK SHAFT 類
◆ 주요사양
| 구분 | HFW-10S(I) | HFW-100S(I) | HFW-500S(I) | OPTION |
| M/C SIZE | W : 1500(1700) L : 3500(3500) H : 3000(3100) |
W : 2500(2700) L : 3500(3500) H : 3000(3100) |
||
| NOZZLE STROKE | X-AXIS : 350mm(350mm) | |||
| Y-AXIS : 500mm(7010mm) | ||||
| Z-AXIS : 400mm(400mm) | ||||
| RAPID FEED SPEED | X-AXIS : 500mm/sec(500mm/sec) | |||
| Y-AXIS : 500mm/sec(500mm/sec) | ||||
| Z-AXIS : 250mm/sec(250mm/sec) | ||||
| NOZZLE TURN'G | W-AXIS : 50rpm(50rpm) | OPTION 事次 | ||
| WORK TURN'G | R-AXIS : 180˚(360˚) | OPTION 事次 | ||
| WASH'G 壓力 | 10kg/㎠ 50L/min |
100kg/㎠ 20L/min |
500kg/㎠ 20L/min |
|
| FILTER'G SYSTEM | 1次 : MESH BASKET 2次 : BAG FILTER |
OPTION 事次 | ||
| CONTROLLER | NC制御 方式 | OPTION 事次 | ||
◆ 도면보기
