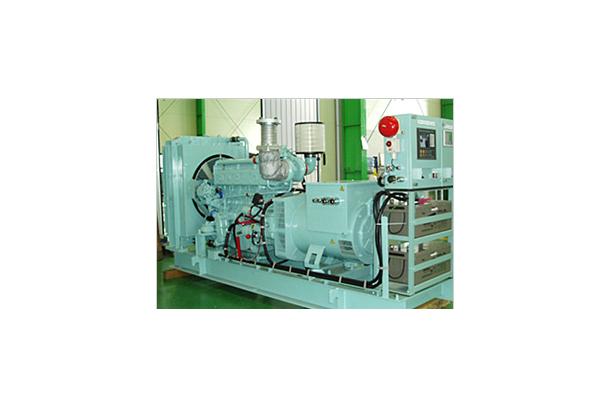

Marine Emergency diesel generator sets from 60kW to 2,000kW. Generator sets are fully classed to major classification societies.

Emergency Generator Set(DOOSAN INFRACORE)

Gen-set Ratings (kW)	Diesel Engine		Dimension L x W x H	Weight
	Model	Outpu (kW)
100	AD136TI	138	2,800×1,150×1,550 mm	1,700 kg
120 ~ 125			2,850×1,150×1,550 mm	1,800 kg
130	AD086TI	186	2,900×1,400×1,550 mm	1,800 kg
150 ~ 160			2,900×1,400×1,550 mm	1,850 kg
180	AD126TI	247	3,000×1,450×1,550 mm	2,500 kg
200			3,000×1,450×1,550 mm	2,500 kg
250	AD158TI	353	3,050×1,500×1,750 mm	3,000 kg
300			3,050×1,500×1,750 mm	3,100 kg
350	AD180TI	441	3,100×1,550×1,800 mm	3,850 kg
400			3,100×1,550×1,800 mm	3,950 kg
450	AD222TI	530	3,250×1,550×1,850 mm	4,250 kg
500			3,250×1,550×1,850 mm	4,450 kg

- 60Hz, 1,800rpm, AC450V, IP23, Insulation Class “H” with Temperature Rise Class “F”

Emergency Generator Set(MAN)

Gen-set Ratings (kW)	Diesel Engine		Dimension L x W x H	Weight
	Model	Output (kW)
200 ~ 276	D2866 LXE20	313	2,900×1,050×1,600 mm	2,800 kg
277 ~ 325	D2866 LE203	364	3,000×1,100×1,600 mm	2,900 kg
326 ~ 420	D2876 LE203	460	3,100×1,100×1,600 mm	3,200 kg
421 ~ 485	D2840 LE203	532	3,500×1,400×1,700 mm	4,300 kg
486 ~ 600	D2842 LE203	653	3,900×1,400×1,700 mm	4,700 kg

Emergency Generator Set(CUMMINS)

Gen-set Ratings (kW)	Diesel Engine		Dimension L x W x H	Weight
	Model	Output (kW)
600 ~ 910	KTA38DM	1,007	5,200×1,850×2,650 mm	8,000 kg
920 ~ 1,100	KTA50DM	1,220	6,000×1,850×2,650 mm	11,500 kg
1,200	QSK50DM	1,343	7,000×2,500×2,950 mm	14,800 kg
~ 1,750	QSK60DM	1,900	7,200×2,500×2,950 mm	17,000 kg
