Wireless Indoor Air Quality Monitor

모델명

시리즈

가스측정기


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


032-584-7420

제품 상세 설명

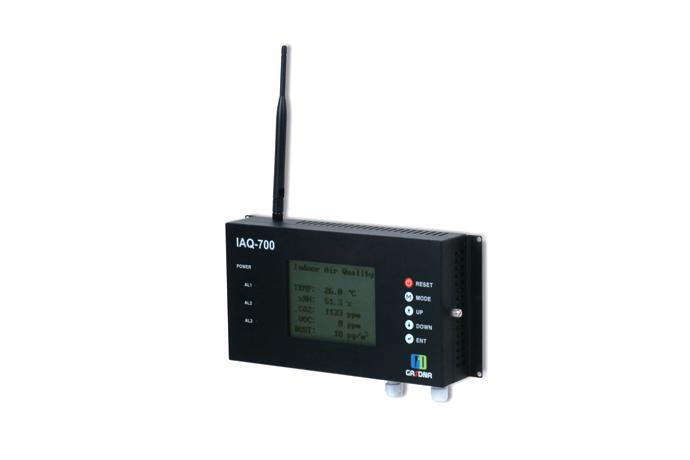

IAQ-700 is a high accuracy indoor air quality monitor, which measure VOC. CO2, Temperature, Humidity and dust.
 Through large size of graphic LCD, it provides real-time monitoring and can transmit data wirelessly through built in ZigBee.
 After install indoor Watch (software), it enable to collect data at a long distance.
 Relay Contact make it possible to interwork with a ventilating system.
 It has been installed to measure Air quality of indoor or underground spaces like Factories, schools, Public places etc.



[ Features ]

ㆍ Multi Gas Measurement
    Measurement of VOC, CO2, Dust, Temperature and humidity at the same time.
ㆍ ZigBee wireless communication
    Can reach max 1.2Km in case of non-obstacle.
ㆍ Real time storage of data
    ‘Indoor Watch’ program enable to transmit data in real time at a long distance
ㆍ Digital Process
    Measurement of VOC, CO2, Dust, Temperature and humidity at the same time.
ㆍ LCD Display with Back-Light
ㆍ Relay Signal-Output
    Provide 2 Step-Relay Contact and interwork with a ventilating system



[ Specification ]


Segment Specification
VOC Detection principle Semiconductor or PID
Measurement range 0 ~ 1000 ppm
Resolution 1 ppm
Accuracy £ ±3%/Full Scale
Response time within 20 seconds, 90%/full scale
CO2 Detection principle NDIR
Measurement range 400 ~ 10,000 ppm
Resolution 10 ppm
Accuracy ≤2% /full scale
Response time Within 30 sec (T90)
DUST Detection principle Light Scattering
Measurement range 0 ~ 500 ㎍/㎥
Resolution 1 ㎍/㎥
Accuracy £ ±3%/Full Scale
Response time Within 10 sec (T90)
Temperature Detection principle Thermister
Measurement range -25 ~ 60 ℃
Resolution 0.2 ℃
Accuracy £ ±2%/Full Scale
Response time Within 10 sec (T90)
Humidity Detection principle Thin Film electronic capacity
Measurement range 0 ~100%RH
Resolution 0.4% RH
Accuracy £ ±3%/Full Scale
Response time Within 15 sec (T90)
Communication ZigBee
Input power DC9V ~ DC24V
Density Display 320×240 DOT Graphic LCD Display
Alarm Display AL-1,AL-2 LED(RED)
Alarm Output 2 Step RELAY CONTACT
Operation Temperature -10℃ ~ 70℃
Operation Humidity 5 ~ 95%RH (Non-Condensing)
Installation Wall Mounting Type
