Features

“SPLIT-BODY, FREE FLOATING BALL, SOFT SEATED & CASTING DEISGN”

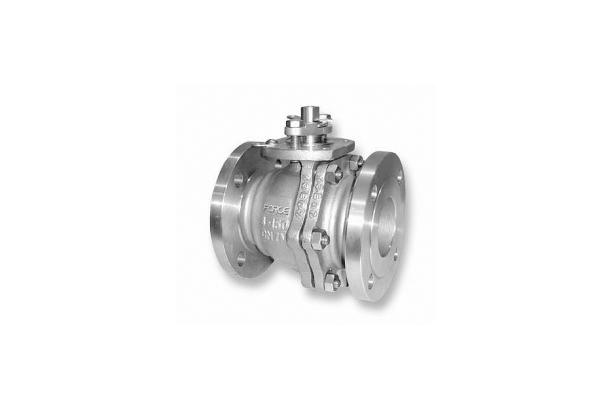

The BFS Series Two-Piece, Full/ Reduced port, Flanged/ Welded end, Soft seated casting ball valves are designed, constructed and tested strictly in accordance with the latest international standards of API, ASME, BS, and DIN. It provide bubble-tight shutoff, low maintenance, no-leak stem seals and the safety assurance of a blowout-proof stem assembly.

Materials include cast carbon steel, low-temperature carbon steel, stainless steel, Monel, Hastelloy, Alloy 20 and others as required. These materials are compliance with NACE standard MR 0175 specifications.

Specifications

Split body, side entry, reduced port, free floating ball, "Fire-safe" designed to API 607/ISO 10497, anti-blow out proof stem, pressure balance hole in ball and locking device.

Designed to API 6D, ASME B 16.34, API 608 and ISO 17292/ BS 5351 specifications.

- Size Range : NPS 1/2(DN 15) to NPS 12(DN 300)
- Pressure Rating : ASME Class 150 to 1500
- Face-to-face or End-to-end : API 6D and ASME B16.10
- Flanged End : ASME B16.5 FF, RF, RTJ
- Welded End : ASME B16.25
- Valve Inspection and Test : API 598
- Materials : CS, LTCS, SS & Duplex, Etc..
