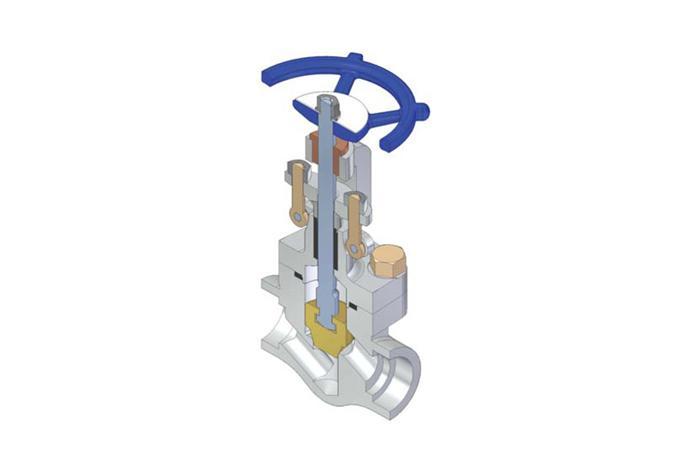

GLOBE VALVE

ㆍDESCRIPTION

Are ideal for throttling service. Their flow characteristics permit accurate and repeatable flow control. However, caution must be exercised to avoid extremely close throttling when pressure drop exceeds 20%. This creates excessive noise, vibration, and possibly damage to valves and piping. When these conditions are anticipated, consult dong-kang for recommendations.

ㆍCLASS

API 800, 1500
ANSI 150, 300, 600, 900, 2500, 4500

ㆍSIZE

3/8" , 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"

ㆍMATERIAL

ASTM A105, A182-F5, A182-F9, A182-F11, A182-F22, A182-F304, A182-F316, A182-F304L, A182-F316L, A182-F321, A182-F347, A182-F51, A182-F91, A350-LF2
Other Materials also Available on Application

ㆍEND CONNECTION

SOCKET WELDING, THREADED BUTT WELDING, FLANGED

ㆍFEATURE

BOLTED BONNET OR WELDED BONNET OUTSIDE SCREW & YOKE PLUG DISC INTEGRAL SEAT
