지금 보고 계신 제품의 제조사에요
(주)다성테크

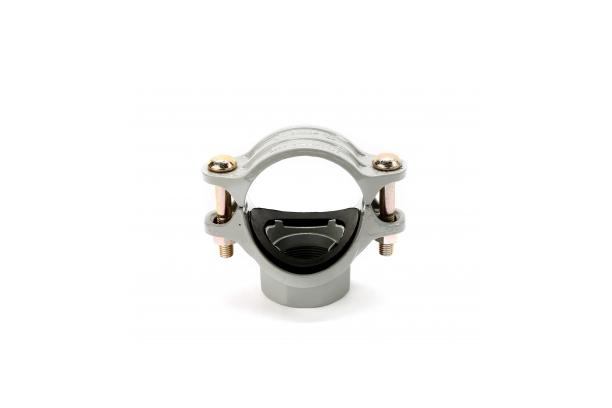

제품 상세 정보
제품 상세스펙
| Nominal size | OD | Work pressure | Hole Size | W,Y,Z,T,V | Bolts Size | Approx.Wt.Ea. |
|---|---|---|---|---|---|---|
| mm(Inch) | mm | Psi(kgf/cm2) | mm | mm | mm | kg |
| 50x25(2x1) | 60.5x34.0 | 300 (21) | 38.1 | 36 139 69 44 63 | M12x60 | 1 |
| 50x32(2x1¼) | 60.5x42.7 | 300(21) | 44.5 | 36 139 75 46 67 | M12x60 | 1.1 |
| 65x25(2½x1) | 76.3x34.0 | 300(21) | 38.1 | 45 156 69 47 66 | M12x75 | 1.1 |
| 65x32(2½x1¼) | 76.3x42.7 | 300(21) | 44.5 | 45 156 75 48 69 | M12x75 | 1.2 |
| 65x40(2½x1½ ) | 76.3x48.6 | 300(21) | 50.8 | 45 156 83 48 69 | M12x75 | 1.3 |
| 80x25(3x1 ) | 89.1x34.0 | 300(21) | 38.1 | 51 166 69 54 73 | M12x75 | 1.2 |
| 80x32(3x1¼ ) | 89.1x42.7 | 300(21) | 44.5 | 51 166 75 54 75 | M12x75 | 1.3 |
| 80x40(3x1½ ) | 89.1x48.6 | 300(21) | 50.8 | 51 166 83 54 75 | M12x75 | 1.4 |
| 80x50(3x2 ) | 88.9x60.3 | 300(21) | 63.5 | 51 166 95 54 79 | M12x75 | 1.5 |
| 100x25(4x1 ) | 114.3x34.0 | 300(21) | 38.1 | 64 191 69 68 87 | M12x75 | 1.5 |
| 100x32(4x1¼ ) | 114.3x42.7 | 300(21) | 44.5 | 64 191 75 68 89 | M12x75 | 1.6 |
| 100x40(4x1½ ) | 114.3x48.6 | 300(21) | 50.8 | 64 191 83 68 89 | M12x75 | 1.7 |
| 100x50(4x2 ) | 114.3x60.5 | 300(21) | 63.5 | 64 191 95 68 93 | M12x75 | 1.9 |
| 100x65(4x2½ ) | 114.3x76.3 | 300(21) | 69.9 | 64 191 102 67 97 | M12x75 | 2.1 |
| 100x80(4x3 ) | 114.3x89.1 | 300(21) | 88.9 | 64 191 122 67 100 | M12x75 | 2.4 |
| 125x25(5x1) | 139.8x34.0 | 300(21) | 38.1 | 78 234 69 84 103 | M16x90 | 2.1 |
| 125x32(5x¼ ) | 139.8x42.7 | 300(21) | 44.5 | 78 234 75 87 108 | M16x90 | 2.2 |
| 125x40(5x1½ ) | 139.8x48.6 | 300(21) | 50.8 | 78 234 83 87 108 | M16x90 | 2.3 |
| 125x50(5x2 ) | 139.8x60.5 | 300(21) | 63.5 | 78 234 95 84 110 | M16x90 | 2.5 |
| 125x65(5x2½) | 139.8x76.3 | 300(21) | 69.9 | 78 234 102 85 115 | M16x90 | 2.9 |
| 125x80(5x3) | 139.8x89.1 | 300(21) | 88.9 | 78 234 122 87 120 | M16x90 | 3 |
| 150x25(6x1) | 165.2x34.0 | 300(21) | 38.1 | 91 258 69 95 114 | M16x90 | 2.3 |
| 150x32(6x1¼ ) | 165.2x42.7 | 300(21) | 44.5 | 91 258 75 95 116 | M16x90 | 2.4 |
| 150x40(6x1½ ) | 165.2x48.6 | 300(21) | 50.8 | 91 258 83 96 117 | M16x90 | 2.5 |
| 150x50(6x2 ) | 165.2x60.5 | 300(21) | 63.5 | 91 258 95 94 120 | M16x90 | 2.7 |
| 150x65(6x2½) | 165.2x76.3 | 300(21) | 69.9 | 91 258 102 94 124 | M16x90 | 3.1 |
| 150x80(6x3 ) | 165.2x89.1 | 300(21) | 88.9 | 91 258 122 94 127 | M16x90 | 3.4 |
| 200x25(8x1 ) | 216.3x34.0 | 300(21) | 38.1 | 120 330 69 126 145 | M20x100 | 3.5 |
| 200x32(8x1¼ ) | 216.3x42.7 | 300(21) | 44.5 | 120 330 75 124 145 | M20x100 | 3.6 |
| 200x40(8x1½ ) | 216.3x48.6 | 300(21) | 50.8 | 120 330 83 124 145 | M20x100 | 3.8 |
| 200x50(8x2 ) | 216.3x60.5 | 300(21) | 63.5 | 120 330 95 122 148 | M20x100 | 4 |
| 200x65(8x2½ ) | 216.3x76.3 | 300(21) | 69.9 | 120 330 102 122 152 | M20x100 | 4.4 |
| 200x80(8x3 ) | 216.3x89.1 | 300(21) | 88.9 | 120 330 122 122 155 | M20x100 | 4.6 |
