Features

- 316L annealed stainless steel

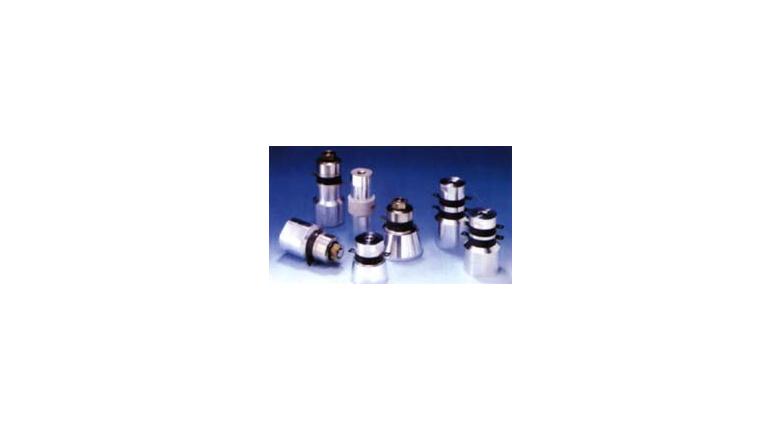

- 25kHz∼40kHz transducer modules

- Simultaneous Multi-Frequency

- Four(4) standard size

- Availab;e in 200 Watt and 1200 Watt output

- Standard sizes as well as custom sizes available

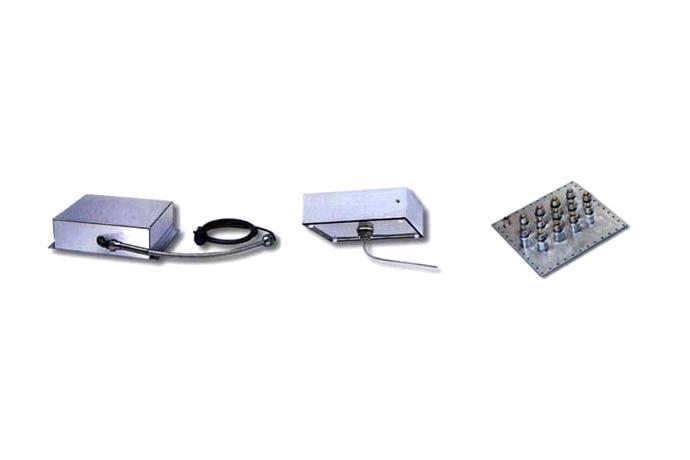

Mounting configuration

ㆍType BM
For bottom-mounting, they are fixed to tank bottom, using integral mounting flange.
Other lengths available.


ㆍType SM
For high-power applications,side-mounting was commonly used.
One or two bulkhead fittings, depending on transducer size.
Other lengths available



Specifications(Transducer)

Model	Out put (W)	Frequency (KHZ)	Dimension (A Type)	Dimension (B Type)	Generator
DUT-200B	200	28∼40	200×150×110	.	DUG-200
DUT-400B	400	28∼40	250×180×110	.	DUG-400
DUT-600B	600	28∼40	280×200×110	.	DUG-600
DUT-1200B	1200	28∼40	350×300×110	400×240×110	DUG-1200



Specifications(특수용)

Model	Out put (W)	Frequency (KHZ)	M'TL (재질)	Generator	Transducer	Liguid (사용액)
DHU/T-1200	1200	28~40	Titanium (티타늄)	DUG/T-1200	DUT/T-1200	황산, 염산, 질산의 강산용
특수용(티타늄) 진동부의 경우 보증기간 6개월
