Compact Power Amplifier for M-FSM Mechanism

모델명

시리즈

Magnetic Controllers


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


+33-4-56-58-04-00

제품 상세 설명

Description

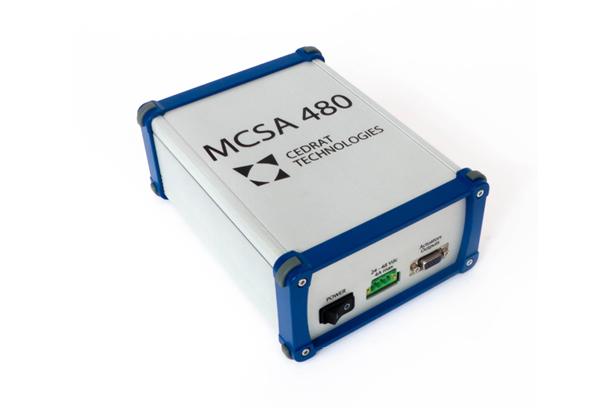

The MCSA480 is a compact 2-channel power switching amplifier for M-FSM mechanisms. It features a wide bandwidth current controller and can run with an external DC supply. It can be controlled in closed loop via 2 analog command inputs and 2 analog sensors inputs.


Performances

Input = 24-48 Vdc; Max output current & voltage : up to 10A, +/- 48V; Output power: 48-96 W; Dimensions (w x l x h): 200x151x81mm3. Commands : analog (for control) / digital (for PID configuration via USB or RS422).


Status

Preliminary

자료 다운로드

Catalog-Cedrat Technologies-Compact Power Amplifier for M-FSM Mechanism-MCSA480
