Embedded All-in-one 2 Axis Controller

모델명

시리즈

Piezo Controllers


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


+33-4-56-58-04-00

제품 상세 설명

Description

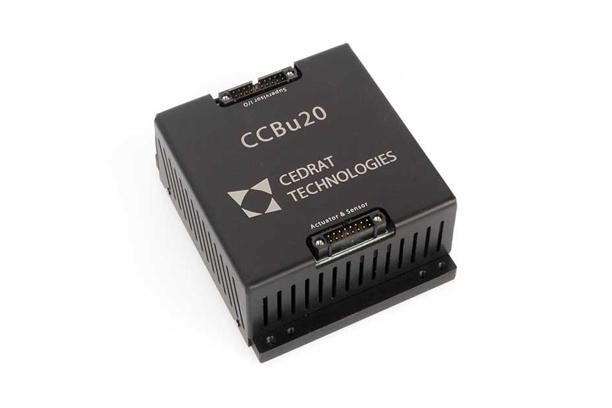

The Compact Controller Board CCBu20 is an embedded all-in-one controller for piezo actuators. It features everything to drive and control a 2 axis piezo-mechanism in position loop. In standard, its integrated dual channel SG conditioner allows reading the position of the two axis of the mechanism. A powerful processor realizes closed-loop control at high refresh rate, and the controller can be tuned by the user with the HDPM45 interface. Thanks to a compact design, it has dimensions of only 91x77x37mm, making it suitable for embedded applications, or industrial applications where the volume is an issue. The Graphical User Interface to modify the parameters of the CCBu20 is similar to the UC digital controllers that can be downloaded on the dedicated page.


Performances

Supply voltage of +12Vdc to +28Vdc; analog or digital commands with RS422 protocol, up to 2 axis in push pull; Piezo voltage: -20V to +150V; Max. current (sinus): 33mA; Max current (pic): 200mA.


Available options

0-5V analog sensor input, Advanced controller


Status

Standard

자료 다운로드

2D Drawing-Cedrat Technologies-Embedded All-in-one 2 Axis Controller-CCBu20
