Linear Piezo Motor Developer Kit
모델명
LSPA30uXS
자료
Catalog-Cedrat Technologies-Linear Piezo Motor Developer Kit-LSPA30uXS
구매정보
provider logo
CEDRAT TECHNOLOGIES
스마트 액추에이터, 스마트 센서, 메카트로닉 시스템, 디텍션 시스템 등
연락처
+33 4-56-58-04-00
이메일
actuator@cedrat-tec.com
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매의 당사자가 아닙니다.
제조사
CEDRAT TECHNOLOGIES[바로가기]
브랜드
-
SKU
137964
제품명
Linear Piezo Motor Developer Kit
모델명
LSPA30uXS
사이즈
-
중량
-
제품 상세 정보

Linear Stepping Piezo Actuators (LSPA) are long stroke linear piezoelectric motors for high precision positioning. Classified as inertial piezo actuators, they benefit from the APA® heritage, especially from their large deformation and high reliability. LSPA operates by accumulation of small steps produced by a sawtooth-like signal. Between each step, the motor is locked in position and that, without any consumption. As a complementary mode, fine adjustment of the APA® allows to reach nanometre resolution.


The LSPA30uXS Developer kit offers the possibility to discover the potential of the LSPA30uXS, smallest existing LSPA, in stepping mode. With an external dedicated miniature driver (SPC45), and coupled to a high resolution magnetic sensor, the Developer kit is a fully closed-loop solution for high resolution millimetre motion.

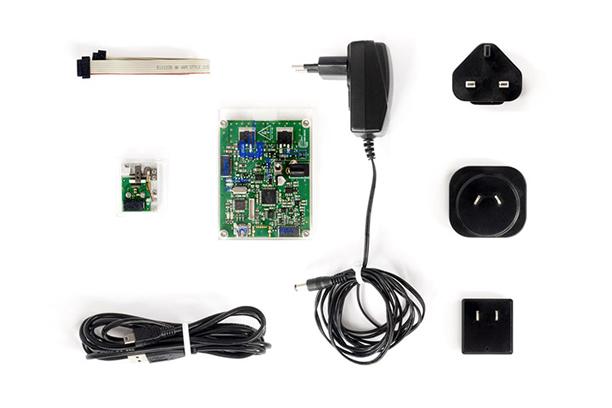

The LSPA30uXS Developer kit is made of different subsystems:

1. LSPA30uXS kit (LSPA30uXS motor coupled with an incremental sensor on a holding platform)

2. SPC45 driver

3. SPC45 Power Supply

4. Cables

5. USB cable for GUI control


The Developer kit is a plug and play solution. It allows learning quickly how to use the LSPA motor. The LSPA30uXS motor can be extracted from the holding platform and integrated directly onto the user’s test bench.


The dedicated driver, the “Stepping Piezo Controller” SPC45
has been built to offer large possibilities to designers, from fast motion setup to completely controlled movement. Both USB interface and serial port are available to meet every designer’s requirements.
