Description

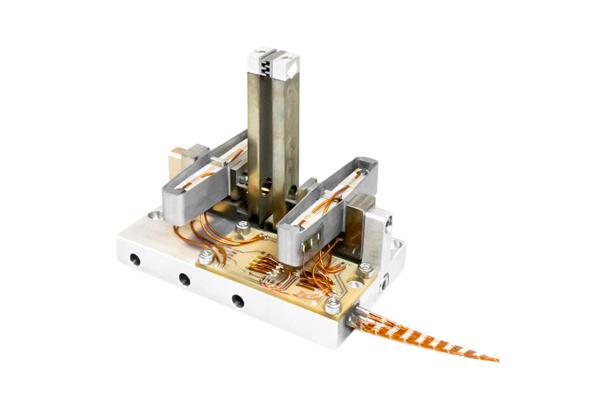

The FAPS400M is a fast shutter solution for X-Ray beamline with large aperture / stroke capability (> 3mm) and short response time (< 8 ms). It is based on two APA400M® each one connected to and actuating a mechanical amplifier or a lever arm.

Performances

Max beam diameter (mm) 3; Aperture & closing time (ms) 8

Available options

Vacuum (VAC)-Ultra High Vacuum (UHV)-Strain Gauge sensor (SG)

Status

Standard
