Product Description
Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC , Ex nR IIC

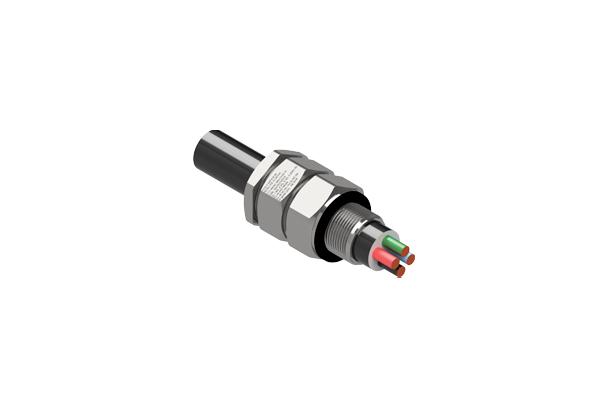

Double Compression Gland for Unarmoured Cable
Features and Benefits
- Passes the IECEx / ATEX / UKEX 100% pull test so no additional cable clamping is required.
- For indoor, outdoor, Group I, II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
- Fitted with two specially formulated elastomeric displacement seals, for dual redundancy and superior cable retention, explosion protection and IP rating.
- Precision manufactured from high quality brass (Marine Grade Electroless Nickel Plated™) available in aluminium or stainless steel 316/316L on request. (Note: Aluminium not suitable for Group I applications).
- Supplied with a thread sealing gasket (parallel threads only).
