Product Description

Ex eb IIC, Ex nR IIC, Ex ta IIIC

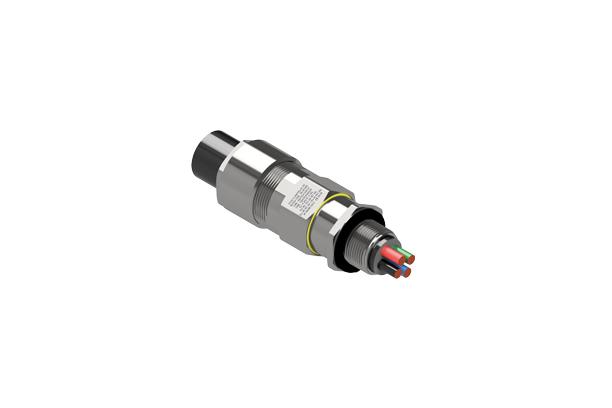

Variable Deluge Seal™ for Multi Armoured and Marine Cables

Features and Benefits

• For indoors, outdoors, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
• Two-part handling, no loose parts.
• Freely rotating captive cone and inspectible cone ring provides an armour clamp and earth bond on steel wire armour, aluminium wire armour, tape armour, braid wire armour cables.
• With a patented Variable Deluge Seal™ as standard.
• Patented disconnect system that allows inspection of armour clamp and inner seal after assembly.
• Factory fitted with specially formulated elastomeric seals for Built-in Safety™.
• Seals on the outer sheath of the cable to IP65/66/68.
• Unique low-contact IP68 inner seal making this gland suitable for use with NEK 606 marine cables susceptible to cold flow.
• Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in stainless steel 316/316L on request.
• Supplied with a thread sealing gasket (parallel threads only).
