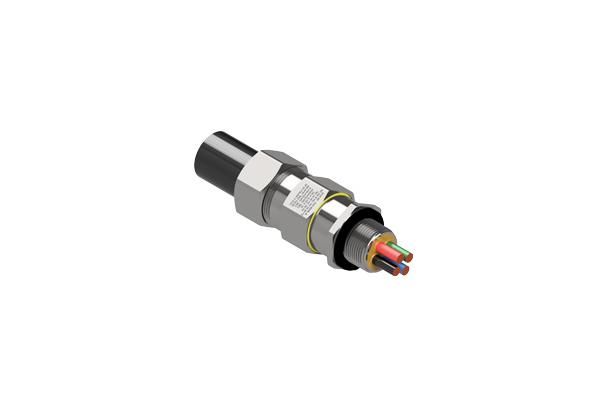

CCG UNITEx VX Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC Variable Deluge Seal™ for Unfilled Multi Armoured and Marine Cables
모델명
시리즈
Hazardous Area Cable Glands
구매 안내
아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.
결제 방법
제조사/판매자에게 문의 바랍니다.
납기 정보
제조사/판매자에게 문의 바랍니다.
배송 정보
제조사/판매자에게 문의 바랍니다.
원산지
제조사/판매자에게 문의 바랍니다.
제품 상세 설명
Product Description
Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC
Variable Deluge Seal™ for Unfilled Multi Armoured and Marine Cables
Features and Benefits
- For indoors, outdoors, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
- For unfilled hygroscopic multicore cables refer to IEC 60079-14; 9.3.2 and 10.6.2a, IEC 61892-7, 10.6 and 10.7.
- Freely rotating captive cone and inspectible cone ring provides an armour clamp and earth bond on steel wire armour, aluminium wire armour, tape armour, braid wire armour cables and NEK 606 marines cable susceptible to cold flow.
- With a patented Variable Deluge Seal™ as standard.
- Instantly mixed and injected resin forms a 100% barrier seal around the individual cores of the cable.
- Prevents explosive gases and/or liquids transmitting down the cable.
- Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in stainless steel 316/316L on request.
- Supplied with a thread sealing gasket (parallel threads only).
