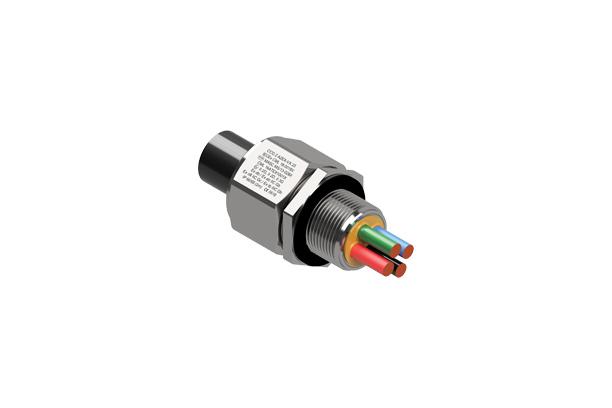

CCG A2EX-VX (VORTEx) Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC Compression Gland for Unfilled Unarmoured Cable
모델명
A2EX-VX (VORTEx)
사이즈
-
중량
-
제품 상세 정보
Product Description
Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC Compression Gland for Unfilled Unarmoured Cable
Features and Benefits
For indoor, outdoor, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
For unfilled hygroscopic multicore cables refer to IEC 60079-14; 9.3.2 and 10.6.2a, IEC 61892-7, 10.6 and 10.7.
Instantly mixed and injected Resin forms a 100% barrier seal around the individual cores of the cable.
Prevents explosive gases and/or liquids transmitting down cable.
Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in aluminium or stainless steel 316/316L on request.
Supplied with a thread sealing gasket (parallel threads only).
