Product Description

Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC

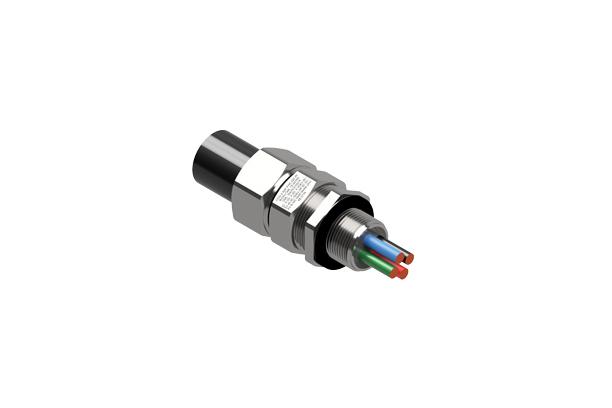

Barrier Gland for Unfilled Unarmoured Cable Housed In Conduit

Features and Benefits

• For indoors, outdoors, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
• For use with all types of unarmoured cable housed in rigid or flexible conduit.
• Fitted with a rotating female conduit coupler.
• Outer seal grips the cable, giving superior cable retention and IP rating.
• Instantly mixed and injected Resin forms a 100% barrier seal around the individual cores of the cable.
• Prevents explosive gases and/or liquids transmitting down the cable.
• Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in stainless steel 316/316L on request.
• Complete with thread sealing gasket.
