Product Description

Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC

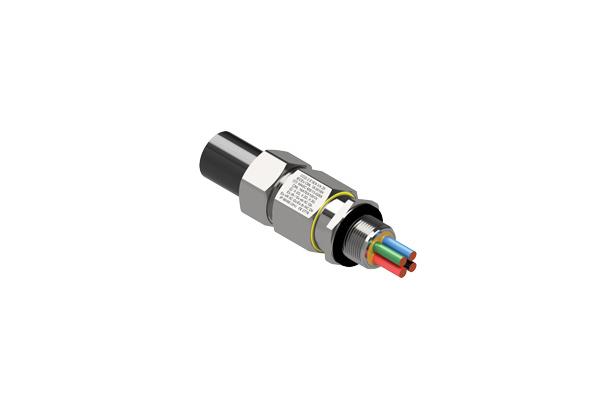

Variable Dual Seal™ for Unfilled Steel Wire and Aluminium Armoured Cable

Features and Benefits

• For indoors, outdoors, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
• For Unfilled hygroscopic multicore cables refer to IEC 60079-14; 9.3.2 and 10.6.2a, IEC 61892-7, 10.6 and 10.7.
• Freely rotating captive cone and inspectible cone ring provides an armour clamp and earth bond on steel wire armour and aluminium armour.
• With a patented Variable Deluge Seal™as standard.
• Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in stainless steel 316/316L on request.
• Instantly mixed and injected resin forms a 100% barrier seal around the individual cores of the cable.
  Prevents explosive gases and/or liquids transmitting down the cable.
• Supplied with a thread sealing gasket (parallel threads only).
