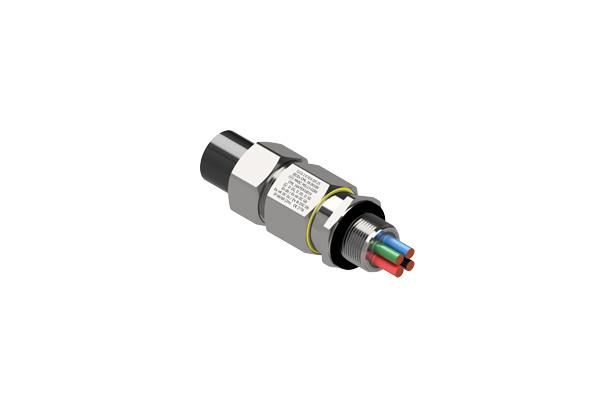

CCG E1EX QuickStop-Ex Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC Variable Dual Seal™ for Unfilled Steel Wire and Aluminium Armoured Cable
모델명
시리즈
Hazardous Area Cable Glands
구매 안내
아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.
결제 방법
제조사/판매자에게 문의 바랍니다.
납기 정보
제조사/판매자에게 문의 바랍니다.
배송 정보
제조사/판매자에게 문의 바랍니다.
원산지
제조사/판매자에게 문의 바랍니다.
제품 상세 설명
Product Description
Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC
Variable Dual Seal™ for Unfilled Steel Wire and Aluminium Armoured Cable
Features and Benefits
- For indoors, outdoors, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
- For Unfilled hygroscopic multicore cables refer to IEC 60079-14; 9.3.2 and 10.6.2a, IEC 61892-7, 10.6 and 10.7.
- Freely rotating captive cone and inspectible cone ring provides an armour clamp and earth bond on steel wire armour and aluminium armour.
- With a patented Variable Deluge Seal™as standard.
- Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in stainless steel 316/316L on request.
- Instantly mixed and injected resin forms a 100% barrier seal around the individual cores of the cable.
- Prevents explosive gases and/or liquids transmitting down the cable.
- Supplied with a thread sealing gasket (parallel threads only).
