Product Description

Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC

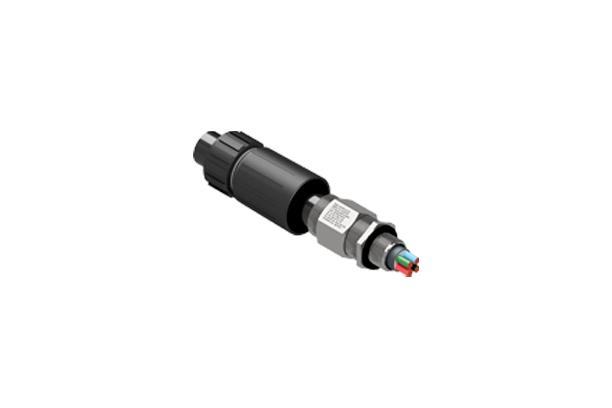

Sealing on outer sheath of f Steel Wire Armour, Aluminium, Copper Tape or Lead Sheathed Cable

Features and Benefits

• For highly corrosive, wet locations, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
• Factory fitted captive elastomeric seals for Built-in Safety™ .
• Two-part handling, freely rotating captive cone and inspectible cone ring provides an armour clamp and earth bond on steel wire and aluminium armour.
• Corrosion Guard® screws onto the gland body and seals over the outer sheath of the cable giving an IP68 and deluge proof seal protecting the armour and metal parts of the gland.
• Provides 360° earthing to copper tape or lead sheath.
• Cable Gland is precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™).
• Supplied with a thread sealing gasket (parallel threads only).
