Product Description

Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC

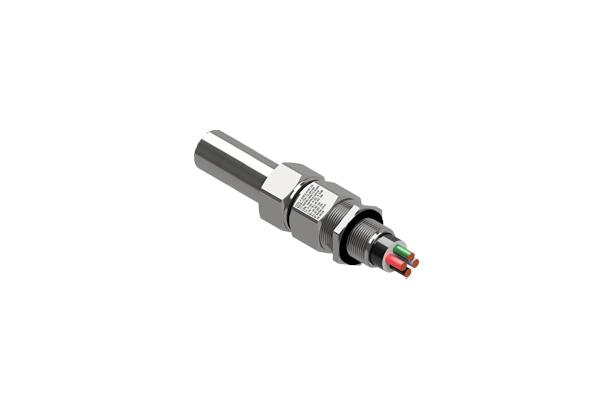

Double Compression Gland for Unarmoured Cable Housed In Conduit

Features and Benefits

• For indoors, outdoors, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
• For use with all types of unarmoured cable housed in rigid or flexible conduit.
• Harder outer seal grips the cable giving superior cable retention and IP rating.
• Fitted with a rotating female conduit coupler.
• Factory fitted with a specially formulated elastomeric seal for Built-in Safety™, seals on the inner sheath of the cable.
• Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in stainless steel 316/316L on request.
• Supplied with a thread sealing gasket (parallel threads only).
