Product Description

Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC, Ex nR IIC

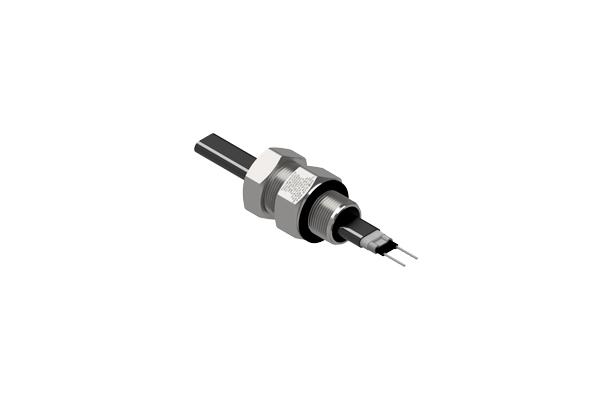

Compression Gland with Conduit Connection for Heat Trace Cable

Features and Benefits

• Passes the IECEx / ATEX / UKEX 100% pull test so no additional cable clamping is required.
• For indoor, outdoor, Group I, II, Ill, Zone 1, 2, 20, 21 and 22 hazardous areas.
• Fitted with a specially formulated elastomeric displacement seal, giving superior cable retention, explosion protection and IP rating.
• Precision manufactured from high quality brass (Marine Grade Electroless Nickel Plated™) available in aluminium or stainless steel 316/316L on request. (Note: Aluminium not suitable for Group I applications.)
• With an M25 female thread to allow the attachment of flexible conduits. Other thread sizes are available on request.
• Supplied with a thread sealing gasket parallel threads only.
