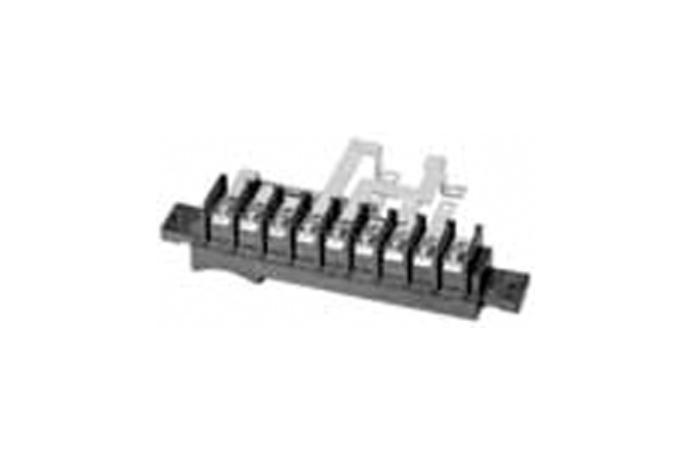

제품 상세 정보
● Rating : 600V 30A
● Insulation Resistance : More Than 1000MΩ DC 500V
● Withstand Voltage : AC2500V Per Minute
● Wire Size / Range : AWG10 ~ 18
● Maximum Acceptable Temperature : -40°C ~ +85°C
|
No |
Component Part |
Material |
Standard |
Plated |
Remark |
|
NO |
Component Part |
Material |
Standard |
Plated |
Remark |
|
1 |
Frame |
P.B.T. |
UL94V-0 |
- |
- |
|
8 |
Bus Bar #6 |
COPPER |
C1100 |
Sn |
t2.0 |
|
2 |
Terminal |
COPPER |
C1100 |
Sn |
- |
|
9 |
Screw |
SWCH10A |
- |
Ni |
- |
|
3 |
Bus Bar #1 |
COPPER |
C1100 |
Sn |
t1.6 |
|
10 |
Washer |
SPCC |
- |
Ni |
□12.5 * 9.7 |
|
4 |
Bus Bar #2 |
COPPER |
C1100 |
Sn |
t2.0 |
|
11 |
Spring Washer |
HSWR62 |
- |
Ni |
Ø 8.3 |
|
5 |
Bus Bar #3 |
COPPER |
C1100 |
Sn |
t2.0 |
|
12 |
Hex Nut #1 |
SWCH10A |
- |
Ni |
M4 6.8 * 7.9 |
|
6 |
Bus Bar #4 |
COPPER |
C1100 |
Sn |
t2.0 |
|
13 |
Hex Nut #2 |
SWCH10A |
- |
Ni |
M5 7.8 * 9.0 |
|
7 |
Bus Bar #5 |
COPPER |
C1100 |
Sn |
t2.0 |
|
|
|
|
|
|
